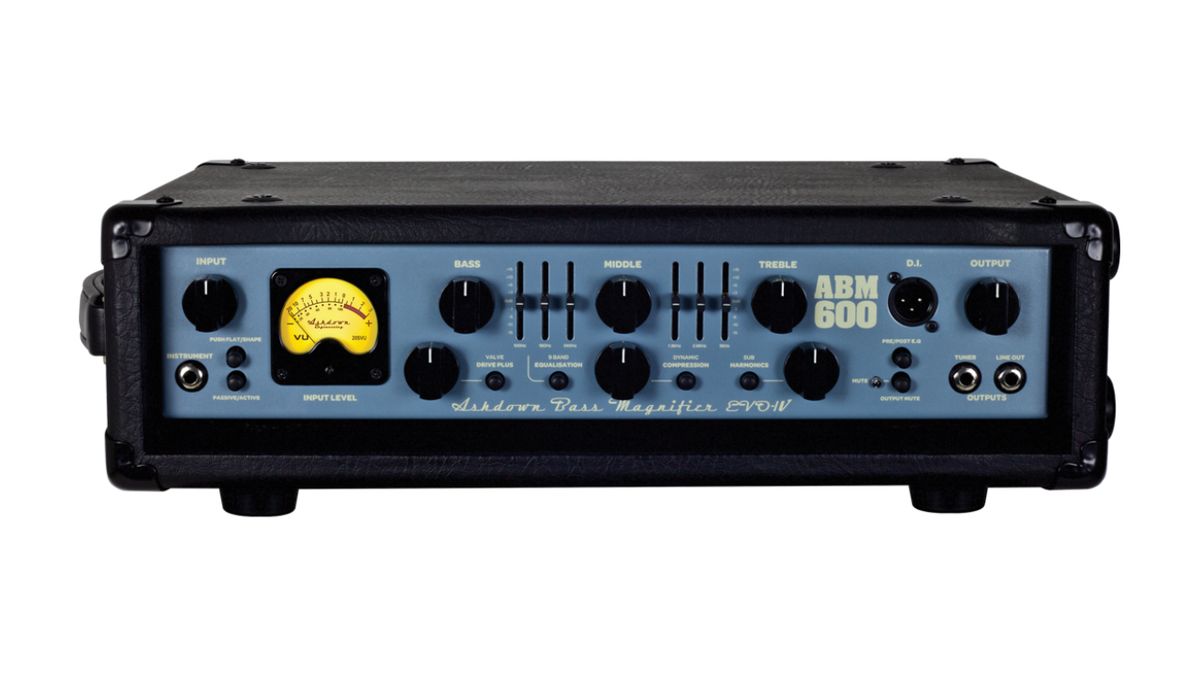

Ashdown ABM-600-EVO IV Bass Magnifier Head (Floor Demo)

Immediately identifiable on stages around the world thanks to its glowing VU meter, the Ashdown ABM has been a firm favourite with professional gigging bass players for the best part of twenty years.
Now in its fifth incarnation, ABM EVO IV pairs class-leading preamp sophistication with uprated powerhouse performance and an all-new 9-band EQ - available in three head versions, two are rated at 600W and one at 1200W.

The ABM 600 EVO IV teams the ABM preamp with a gut-rumbling 600W power stage.

Power Output     600 Watts
Power Requirement     115 - 230 Volts
Speaker Outputs     2 x Jack/Speakon outputs
Frequency Response     -3dB an 17Hz und 30kHz
High Instrument Input     Impedance 3.9m Ohm, input range 150mV -
Low Instrument Input     Impedance - 10k ohms Input range 300mv to 40v p - p
Line Input     Impedance 22k Ohms / Input level 0dBu nominal
DI Output     600 Ohms balanced / Level -20dBu nominal With Ground Lift
Tuner Output     Impedance 22k Ohms, level 0dBu nominal
Impedance     Minimum 4 Ohms
Effects Send     impedance 22k Ohm, Level 0dBu nominal
Effects Return     impedance 22k Ohms, Input Level 0dBu Nominal
Pre-Amp Tubes     1 x 12 AX7
H x W x D (mm)     135 x 474 x 320
Weight (kg)     12.5
