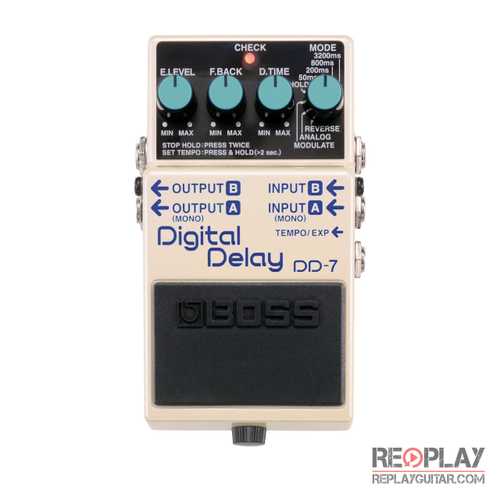

Boss DD-7

THE NEXT STEP IN COMPACT DELAY

Even with the best-selling delays in compact-pedal history, BOSS continues to push the envelope and innovate. The new DD-7 takes the best features from its predecessors and expands the creative potential with Modulation Delay mode, classic modeled Analog Delay mode, External pedal control options, longer delay time, and more.

Controls: E.LEVEL, F.BACK, D.TIME, MODE
Pedal switchIndicator: CHECK (Used for indication of TEMPO, HOLD, and to check battery)

Connectors: INPUT-A (MONO) jack, INPUT-B jack, OUTPUT-A (MONO) jack, OUTPUT-B jack, TEMPO/EXP jack, AC adaptor jack (DC 9 V)

Delay Time: 1 ms to 6400 ms*
Maximum recording time: 40 sec (in Hold mode)
*Values may vary according to the mode and connections.

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Level: -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 ohms or greater

Power Supply: DC 9 V: Dry battery, 9 V type (6F22/carbon, 6LR61/alkaline)
AC Adaptor (PSA-series: optional)DC 9 V: Dry battery 6F22 (9 V) type (carbon)/
Dry battery 6LR61 (9 V) type (alkaline), AC Adaptor (PSA-series: optional)Current Draw55 mA (DC 9 V)

* Expected battery life under continuous use: Carbon: 1.5 hours, Alkaline: 6 hours. These figures will vary depending on the actual conditions of use.

Accessories: Owner's Manual, Mode Sticker, Application Sticker, Leaflets ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (9 V type, 6LR61) *1

Options: AC adaptor (PSA-series), Footswitch: FS-5U, Expression pedal: Roland EV-5
