Brand New (Authorized Dealer) Diamond Halo Chorus Pedal. This pedal really does it all. Its a bit different than most boring chorus pedals out there, this one has a ton of usable features that allow you to get delay, pitch shifting, modulation and true vintage chorus tones out of this all analog, stereo quality stompbox.
Halo Chorus Features:
- parallel combination of delay / pitch modulation and phase modulation gives versatile control over modulation effects from light chorusing to deep 'vibey' swirl
- stereo operation gives wide stereo image spread while preserving the original guitar tone
- NOS MN3007 analog bucket brigade chip running at 15V rails for extended headroom
- dual opto 'vibe' phase modulation path also running at 15V rails
- all analog circuitry
- autoconfigures for mono, mono in / stereo out, and stereo in / stereo out operation
- pure sinusoidal LFO using a dedicated function generator IC for smooth modulation with variable 'SPEED' and chorus pitch modulation depth 'CH DEPTH'
- 'CH MIX' and 'PM MIX' controls allows independent control of chorus and phase modulation mix levels in both mono and stereo configurations
- kill-dry switch for parallel FX loop operation or use of chorus path for pure vibrato
- mono input signal passed through to both outputs on bypass
- phase switch to invert phase of right channel output relative to left
- LED indication of LFO speed
- expression pedal control of LFO speed
- same Vishay JFET / audiophile BurrBrown opamp signal path as in Memory Lane delay
- telecom grade relay switched true bypass operation on all inputs and outputs
- internally regulated to 15V, can be run from provided 24V adapter or from 18V pedal board power supply outputs (including Y-cable powering from 2 9V outputs on the Voodoo Labs Pedal Power 2 Plus, Burkey Flatliner or other compatible power supply)
- genuine Hammond cast aluminium 4.7 x 4.7 x 1.0 inch case

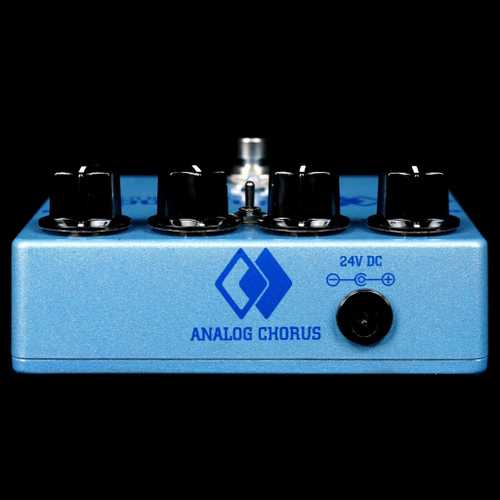

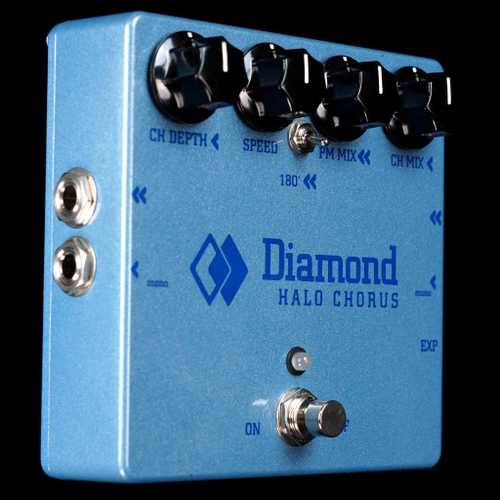

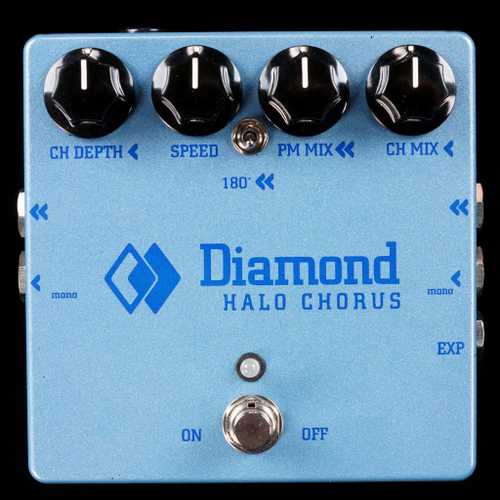

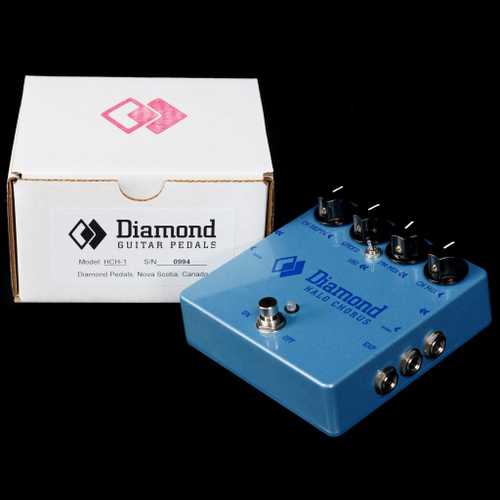

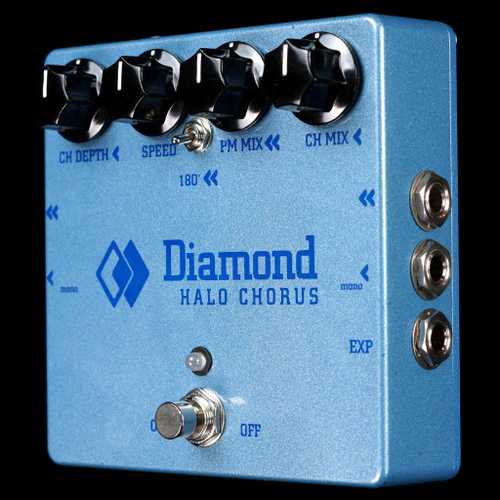

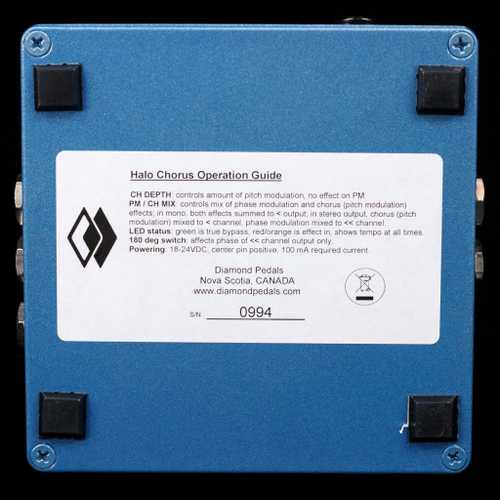

We NEVER use stock photography here at Distinctive Guitar - Please Scroll Down to see a ton of HD images of the exact item for sale. Serial Numbers may vary as we have several units in stock.
