One of the Very First Gibson L-5 CES's
1949 Gibson L-5CNE 'McCarty'

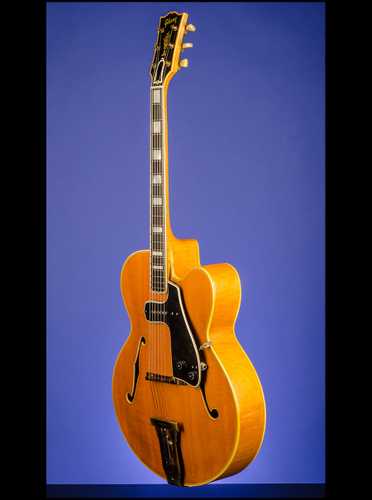

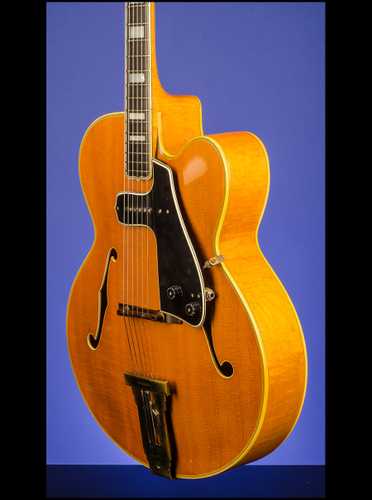

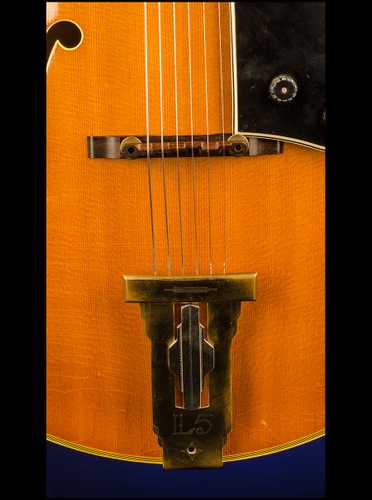

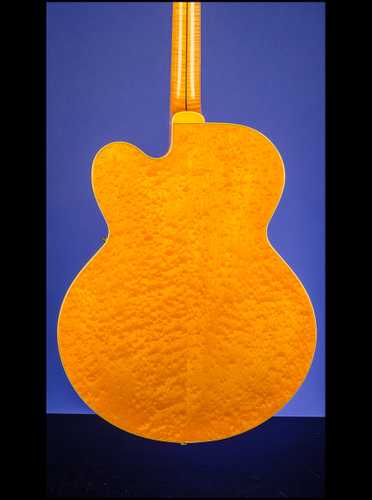

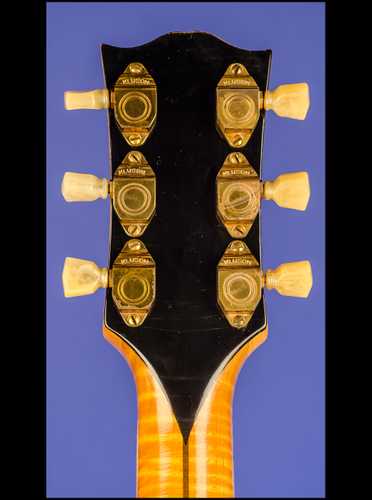

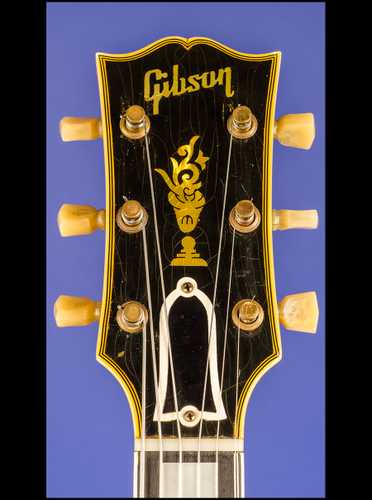

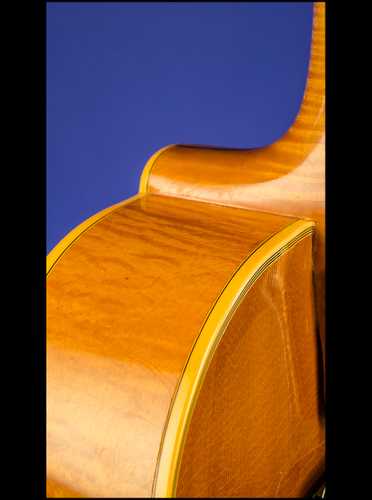

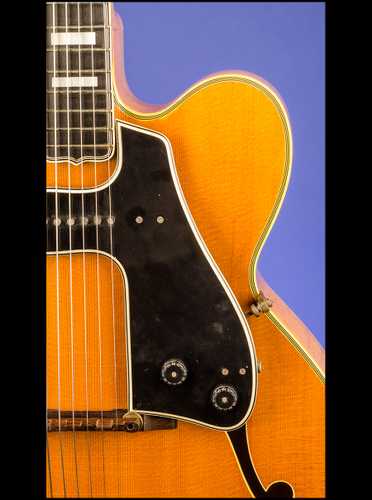

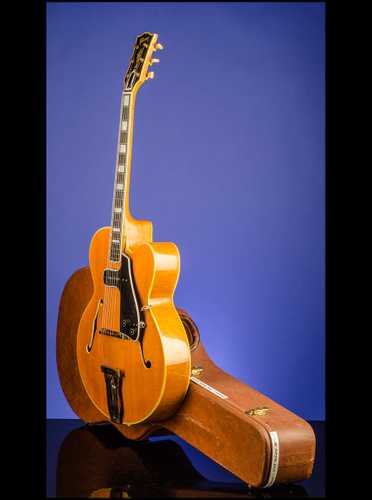

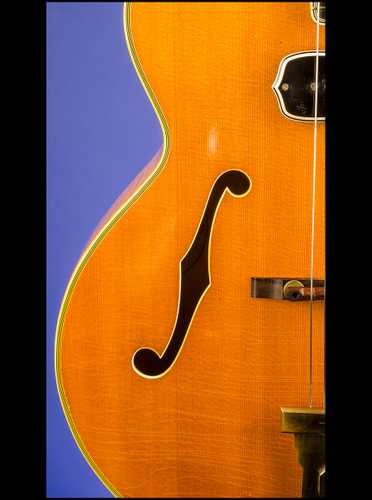

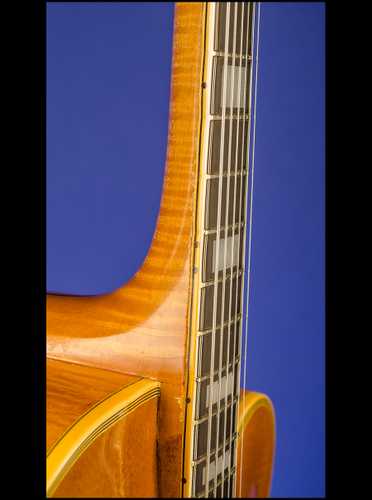

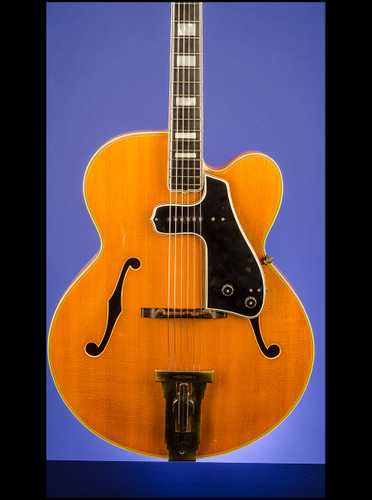

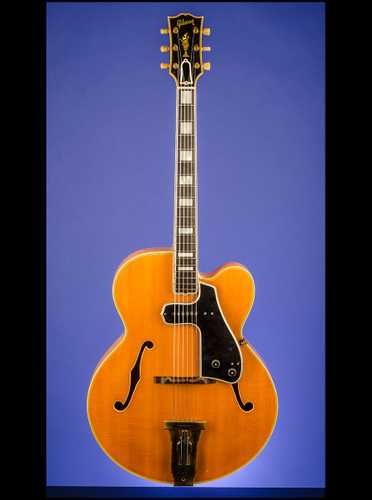

This magnificent 17-inch-wide blond L-5 CNE weighs just 6.80 lbs. and has a perfectly book-matched carved natural spruce top with a highly-flamed two-piece 'birds-eye' maple back and highly-flamed curly maple sides. Two-piece highly-flamed curly maple neck with a center mahogany strip, and multi-bound ebony fretboard with a small, graceful point at the end of the fretboard. The nut width is just under 1 11/16 inches and the neck profile is nice and thick starting at 0.90 inch behind the first fret and rising gently to 1.00 inches behind the eleventh fret. Twenty original medium-thin frets, and inlaid pearl block position markers. Nine-ply binding on the top of the guitar, five-ply binding on the back, and single-bound f-holes. Multi-bound headstock with inlaid pearl "Gibson" logo and pearl "L-5" flowerpot inlay. Black plastic bell-shaped truss-rod cover with white binding. Black-painted headstock rear face with widow's peak. Individual Kluson Sealfast tuners with tulip-shaped metal buttons. Original Gibson 'McCarty' single-coil pickup (with an ouput of 5.55k) with non-adjustable, flat pole pieces mounted into a five layer black over white plastic laminated pickguard together with one volume and one tone control with Centralab potentiometers and a regular (instead of the screw-on type) input jack. Black plastic circular knobs (9/16 inch in diameter, 5/16 inches tall) with ribbed sides. Inside the bass 'f' hole is the original Gibson white oval label with Style number "L5-CES" written in ink and the serial number "A-2995" (March 1949) stamped in black. Inside the treble 'f' hole is the FON (factory order number) "305 7" (late 1953) stamped in black. Original multi-bound tortoiseshell pickguard. Original Gibson rosewood bridge with pre-set compensating saddle on height-adjustable rosewood base and gold-plated flat plate tailpiece with engraved "L 5" and small hole at the bottom center (for allen wrench tension adjustment). All hardware gold-plated. Under ultra-violet light (and only under UV) there appears to be a 'filled-in' small hole on the back of the headstock where assumedly a previous owner had fitted a strap-button. There is some fine finish checking on the back and a few miniscule marks on the top, but otherwise this incredible guitar is truly in near mint (9.25) and totally original condition. Housed in its original Gibson four-latch brown hardshell case with pink plush lining (9.25).
"The first cutaway L-5s produced after World War ll (1947 and 1948) often will bear the designation "L-5P" on the label inside the body. Thus, technically these post war guitars are also considered L-5 Premiers like their prewar ancestors. Some subtle changes in ornamentation occurred between the prewar and postwar guitars, and these early postwar instruments are usually combined with the L-5C and L-5CN totals beginning in 1949 when one takes an overview of the postwar L-5 cutaway guitar."
"In 1948 Ted McCarty joined the Gibson company, and one of his first priorities was to expand the potential number of Gibson's electric guitar models in a quick and inexpensive way. He invented an ingenious pickup/pickguard assembly known now as the McCarty pickup, consisting of a very thin single-coil pickup with non-adjustable, flat pole pieces mounted into a laminated pickguard along with volume and tone controls and an input jack. The McCarty pickup assembly was offered in single - and double - pickup versions, for cutaway and non cutaway guitars, and for guitars with nickel-plated parts and gold-plated parts. The pickup was officially introduced on the L-7 guitar as an option, and these early electric L-7s were labeled the L-7E or the L-7PE, with the letter E designating their electric status, while P indicated Premiere, or cutaway, body style. In reality, these were stock L-7 guitars that had the McCarty pickup assembly supplied with them at the factory instead of a conventional acoustic pickguard." (Van Hoose. The Gibson Super 400 [and L-5], pp. 55-56).
This is the first L-5CN with the optional factory fitted McCarty pickup assembly that we have seen. (#1894)
All prices are in US dollars. For our overseas customers please e-mail us for a conversion into your currency if needed. Shipping and Insurance will be charged at cost. Payment by MasterCard or Visa credit card is acceptable. Checks require ten days to clear.
Shipping and Insurance will be charged at cost. We will ship worldwide by FedEx, and UPS. Please ask for details of insurance and freight.
We will give you 48 hours approval on all instruments that are purchased sight unseen. If you are not completely satisfied with the instrument simply contact us within the 48 hour period after receipt, and then return it in the same condition you received it for a full refund, less freight charges, or any related costs including card transactions, taxes and duties levied, especially when returning from other countries. The 48 hour approval period does not apply to amplifiers.
