Description

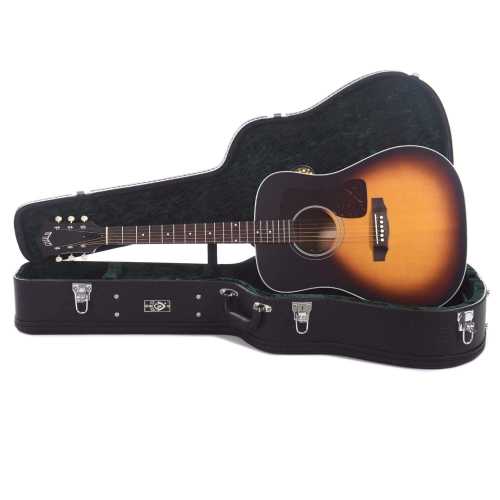

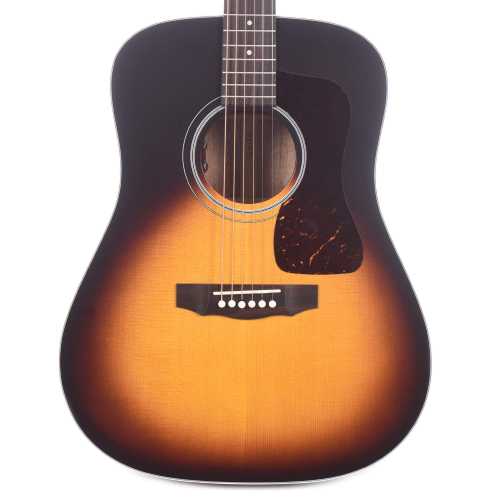

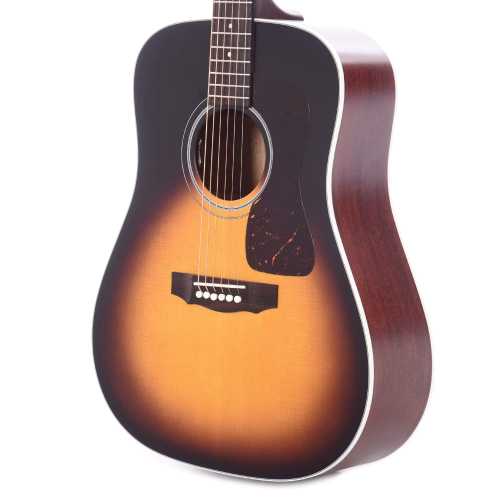

Brand new to the Guild USA line, the D-40 is perfect for players looking for that ultimate dreadnought sound. The classic wood combination of a solid Sitka spruce top and solid African mahogany back and sides provides remarkable volume, clarity and sustain. The D-40 features an East Indian rosewood bridge and fingerboard, premium 20:1 open-gear tuners, and a hand-cut bone nut and saddle. An elegant and thin satin varnish finish gives this guitar its familiar broken-in look and feel, while allowing the tone woods to reach their optimal sonic potential. The D-40’s timeless appointments include a vintage style rosette, tortoiseshell pickguard, white ABS binding, and Guild’s peak logo inlaid on the headstock. Each D-40 comes with a hand-signed, numbered certificate of authenticity, and ships with a Guild archtop wood case with a built-in Humicase humidification system.

Serial #: C206201
Weight: 4lbs 9.5oz

Model: Guild D-40E Tear Drop Antique Burst
Country of Origin USA
Body Shape D - Dreadnought
Color Tear Drop Antique Burst
Finish Satin Nitrocellulose Lacquer

Body Top Solid Sitka Spruce
Soundboard Thickness 1/8" (3mm)
Top Bracing Pattern Scalloped X
Bracing Scalloped Sitka Spruce
Soundhole Diameter 3 7/8" (98mm)
Rosette ABS Ring
Rosette Width 6mm
Top Purfling Inlay Black and White ABS
Body Binding White ABS
Body Sides Solid African Mahogany

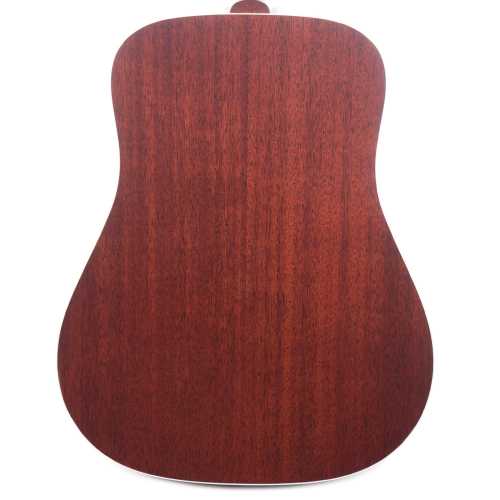

Body Back Solid African Mahogany

Neck Material Mahogany
Neck Joint Mortise and Tenon
Scale Length 25 5/8" (651mm)
Frets to Body 14
Truss Rod Dual Action
Truss Rod Wrench 4mm Allen Key
Neck Shape C Shape
Neck Thickness 1st Fret 21mm
Neck Thickness 9th Fret 22.5mm
Fingerboard Material Indian Rosewood
Fingerboard Radius 12" (305mm)
Frets Total 20
Fingerboard Inlays Pearloid Dots
Nut Material Bone
Nut Width 1 11/16" (43mm)
Nut String Spacing 1 3/8" (36mm)
Nut Thickness 6.0mm
Nut Height 9.0mm
Saddle Material Compensated Bone
Bridge Material Indian Rosewood
Bridge String Spacing 2 1/8" (54mm)
Bridge Pins Ivory Colored Plastic
Bridge Pin Specs 1T size - 3 degree taper - .210" underskirt diameter
Hardware Finish / Plating Nickel Plated

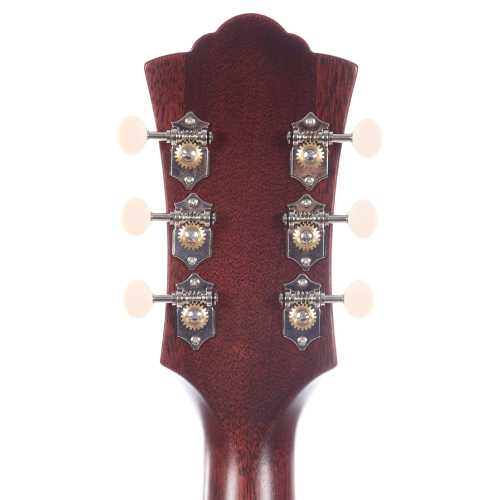

Tuning Machines Guild Deluxe Vintage Open Gear with Cream Oval Buttons
Tuning Machine Ratio 20:1
Tuning Machine Buttons Cream
Endpin Endpin Jack
Endpin (or jack) Diameter 1/2" jack

Pickguard Tortoiseshell
Electronics LR Baggs Element with Volume and Tone Control
Overall Length 41 3/4" (1061mm)
Body Length 20" (508mm)
Upper Bout Width 11 5/8" (295mm)
Waist Width 10.8" (275mm)
Lower Bout Width 16" (406mm)
Body Depth Upper Bout 4" (101mm)
Body Depth Lower Bout 5" (127mm)
