Hilbish Design Sol-Invictus Dual-Channel Preamp and Distortion
The Sol Invictus features an extensive IO selection. The instrument output allows the musician to use the Sol Invictus as a dual channel distortion/overdrive. The line out can be used to drive a poweramp directly for use as a pedalboard mounted preamp. The TRS balanced output can be used to go direct into the mixing board. Each channel also has its own output to be used as the front end for b-amp rigs (sending lows to one cabinet and high's to another).
The Sol-Invictus turns any pedalboard into the perfect compact fly-in or travel rig.

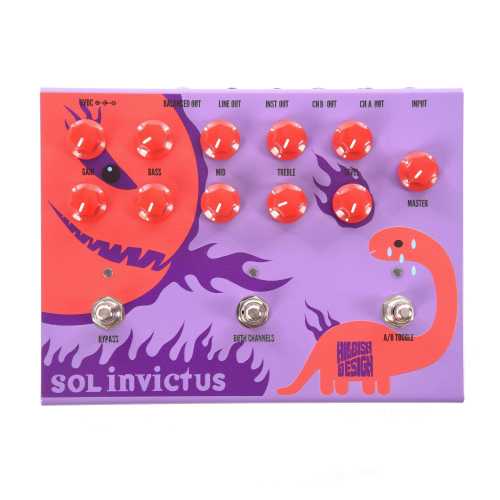

Controls:
- Top row controls channel a, bottom row controls channel b.
- Drive: controls the amount of gain. From clean boost to fuzzed out!
- Bass, Mid, Treble: three band active EQ controls can cut and boost, set center for flat response.
- Level: controls the overall level of each channel.
- Master: controls the overall level of the effect (not active when using ch a/ch b outputs).
Footswitches:
- Bypass: when using the inst output this footswitch switches between the clean instrument signal and the effect signal. when using any of the other outputs (CHA, CHB, line, balanced) the bypass switch acts as a mute switch.
- Both Channels: When activated, turns both channel a and B on.
- A/B Toggle: toggles between channel a (red) and channel b (green).
IO:
- Input: instrument level input for guitar, bass, synth, or whatever other noise maker you have.
- CH A Out: line level output for channel a only.
- CH B Out: line level output for channel b only.
- INST Out: instrument level output, use for “effect pedal” operation into a guitar or bass amp.
- Line Out: line level output for use with power amp, mixing board, or DI.
- Balanced out: TRS balanced out for DI applications that require long cable runs.
Power:
- 9V 200ma center negative supply. using lower current supplies will cause the pedal to not operate correctly!
