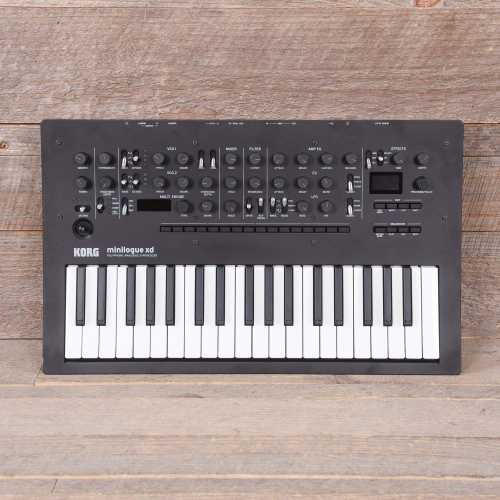

Korg Minilogue XD Gen Minilogue Synthesizer
From Korg:
An evolved next-generation analog synthesizer with huge potential for sound design and performance.
We wanted to deliver a next-generation analog synthesizer for a new generation of musicians new to analog synthesis. That dream was realized in the development of the minilogue, which instantly made the analog synthesizer approachable.
In addition to emphasizing the same real analog sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential.
Minilogue xd is a fitting successor for the original groundbreaking minilogue
Analog synthesizer circuit that shatters expectations for its class
Four-voice polyphonic analog synthesis.The analog synthesizer circuit of the minilogue, whose genuine analog sound had a huge impact on the synth world, has been further developed for the minilogue xd.
Voice structure of minilogue xd is 2VCO + MULTI ENGINE,1VCF, 2EG, 1VCA, and 1LFO. In addition to the distinctive circuits found in the series, such as wave shaping to shape the overtones of the oscillator and a sync/ring switch, there's also cross modulation, a sharp two-pole filter, and a drive switch that adds thickness and drives signal into minilogue xd’s filter. Every parameter has been tuned in detail based on what musicians want out of their synth. The sounds range from the warm pads typical of analog to fat basses and crisp lead sounds, covering every situation.
Of course, programs that you create can also be saved in the unit. Out of the box, minilogue xd comes loaded with 200 presets, and a total of 500 programs can be saved.
Keyboard: 37-keys (Slim-key, velocity sensitive)
Sound Generation: Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
Maximum Polyphony: 4 voices
Programs:
- 500 voices (more than 200 preload, 300 user programs).
- Each program provides a program sort function that includes voice mode settings.
- Favorite function built in.
- 4 (POLY, UNISON, CHORD, ARP / LATCH).
- The VOICEMODE DEPTH setting allows different parameters to be varied for each mode.
- 16-step polyphonic sequencer
- Motion sequence can be used on up to four parameters
- VCO1: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
- VCO2: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
- MODULATION: SYNC, RING, CROSS MOD DEPTH
- MULTI ENGINE: NOISE/VPM/USER, TYPE, SHAPEMIXER: VCO1, VCO2, MULTI
- VCF: CUTOFF, RESONANCE, DRIVE, KEYTRACKAMP
- EG: ATTACK, DECAY, SUSTAIN, RELEASEEG: ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
- LFO: WAVE (SAW, TRIANGLE, SQUARE), MODE (BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
- Main effect Parameters: EFFECT: TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH
- Noise Generator: 4 types
- VPM oscillator: 16 types
- User oscillator: 16 slots
- CHORUS: 8 types
- ENSEMBLE: 3 types
- PHASER: 8 types
- FLANGER: 8 types
- USER: 16 slots
- DELAY: 12 types
- USER: 8 slots
- REVERB: 10 types
- USER: 8 slots
Display:
- Main: Real-time OLED oscilloscope provides visual feedback of parameter changes
- MULTI ENGINE section: 7 segments x 6 digit LED display
Power Consumption: 8 W
Dimensions (W x D x H): 500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"
Weight: 2.8 kg / 6.17 lbs.
Included Items: AC adapter
