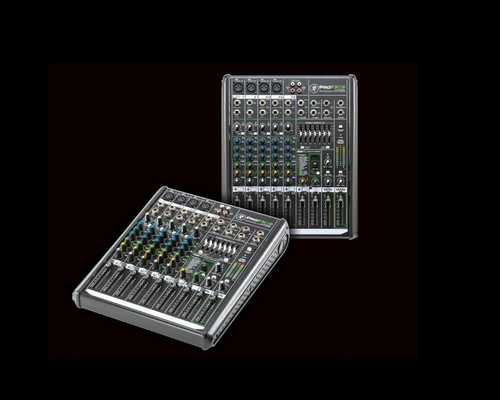

Mackie ProFX 8V2

Small format mixer with USB.

The latest development in Mackie's small format mixers, the ProFX series v2 sounds better than ever and supplies convenient features at every knob, fader, input and output. This is the ProFX8v2. It features 4 extremely low-noise Mackie Vita„¢ mic preamps designed to add life to any input, as well as the all-new ReadyFX„¢ effects engine with 16 great-sounding effects including reverbs, delays and choruses.

Live applications
A 7-band graphic EQ is available on the master output, switchable for tuning mains or monitors, and an aux output is perfect for driving a monitor mix. There is a 3-band EQ (80Hz, 2.5kHz and 12kHz) on all three input channels. The input scheme features four XLR inputs with TRS option, as well as dual 1/4" stereo input channels. A built-in USB interface allows recorded music to be played between sets, and you can even use it to bus your mix to a recording device. 60mm faders.

You can directly connect guitar, bass and other instruments via Hi-Z input or connect a microphone and take advantage of the Vita preamp. It features a 100Hz low-cut filter and 48V phantom power on all mic channels, along with a stereo RCA tape I/O with input level control. A headphone output with separate level control gives your engineer a second point of reference. The ProFX8v2 also has Balanced XLR and balanced/unbalance ¼-inch main outputs, an FX mute with remote control via footswitch, and a break switch that mutes all channels for music playback between sets.


Built like a Mackie
Mackie 's legendary œBuilt-Like-A-Tank design is reflected in the solid steel chassis, tough ABS side protection, and quality posts and knobs combine to protect your investment. Rugged and roadworthy are two of the most common adsjectives used to describe Mackie equipment. With mixers, that is a critical attribute. For international traveling, the ProFX8v2 includes a robust internal multi-voltage power supply

• Format
• Analog/digital: Analog
• Powered: No
• Output (8 ohms): Not applicable
• Analog inputs
• Total: 8
• Mic preamps: 4
• XLR/TRS combo jacks: Not applicable
• XLR only jacks: 4
• 1/4" only jacks: 8
• RCA (stereo pair): 1
• Phantom power: Yes (+48V)
• Analog outputs
• Main XLR out: 2
• Main 1/4" out: 2
• Aux XLR: Not applicable
• Aux 1/4": 2
• RCA (stereo pair): 1
• Headphone: 1
• Onboard effects
• Compression: No
• Reverb: Yes
• Delay: Yes
• Chorus/flange: Yes
• Equalization
• Type: Analog
• Bands per channel: 3
• Treble: Yes
• High midrange: No
• Sweep high midrange: No
• Midrange: Yes
• Sweep midrange: No
• Low midrange: No
• Sweep Low midrange: No
• Low: Yes
• Q: No
• Low cut: Yes
• Inserts/buses
• Inserts (channel): Not applicable
• Inserts (master): Not applicable
• Buses: Not applicable
• Sub groups: Not applicable
• Connectivity
• USB: Yes
• FireWire: No
• WiFi: No
• ADAT: No
• Thunderbolt: No
• S/PDIF No
• MIDI: No
• Other
• Width: 15.6" (396mm)
• Height: 7.0" (178mm)
• Depth: 17.9" (455mm)
• Weight: 10 lbs. (4.5 kg)
• Automation: No
• Fader type: 60mm
• Motorized faders: No
