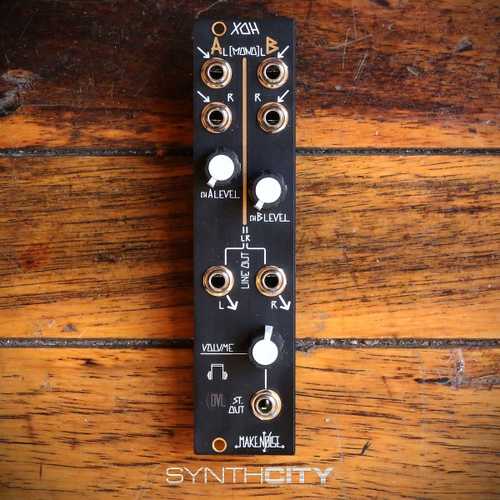

Make Noise XOH

Used, tested, working, very little cosmetic wear visible.

The XOH (miX Out Headphone) music synthesizer module is a stereo mixer, headphone amplifier and output interfacing module for your modular synthesizer. It consists of two stereo input channels with independent level controls, and two stereo outputs: one pair of independent line level left and right outputs at unity gain; and one TRS headphone or line level output with dedicated level control.

Features:
Works well with stereo modules: Erbe-Verb, Morphagene, QPAS, X-PAN, Mimeophon
Two mono/stereo input channels, ChA & ChB
Independent level controls for ChA & ChB
Two stereo outputs containing A/B mix
Independent unity gain L/R Line Level outputs
TRS Headphone and Line Level output with level control (same line drive circuit used in the CV Bus Case)
Adjust Modular Level signals down to Line Level with soft Limiting to protect your ears and line level gear

Specifications:
Width: 6hp
Max Depth
(incl. power cable): 24mm
Power:
40mA@ +12V
40mA @ -12V
