Description

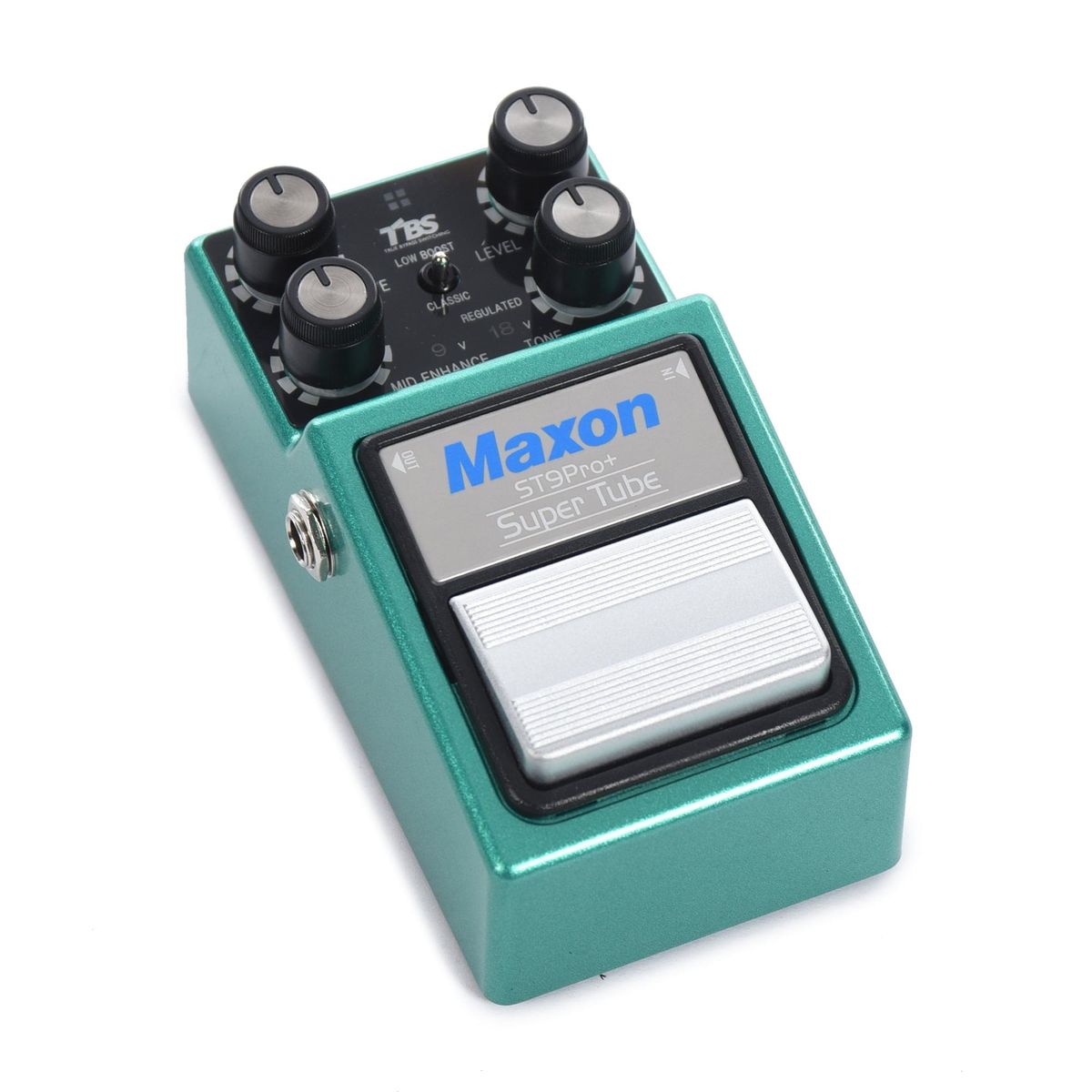

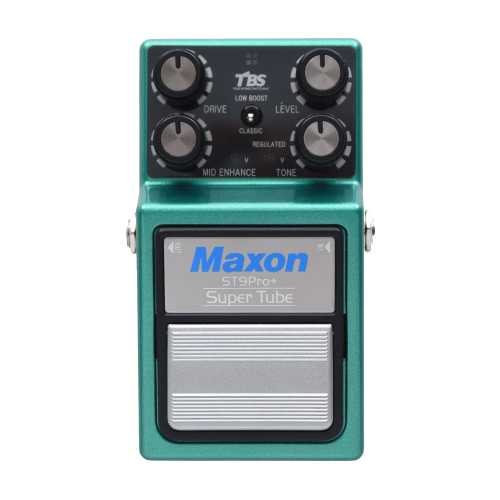

Bigger, Badder, Bolder – these are the best three words to describe the ST-9 Pro+ Super Tube.  The latest and possibly last incarnation of Maxon’s legendary 808, the ST-9 features more output, more gain, and more tonal options for the player who simply needs – well, MORE.

Starting with a circuit loosely based on the classic 808 architecture, the ST-9 adds a Mid Enhance knob to control the amount of midrange boost.  This knob functions similarly to an amp’s presence control, boosting perceived volume and gain as it’s turned up.

You may be wondering why an 808-style pedal would need more presence – allow us to introduce you to the ST-9’s Low Boost switch.

The Low Boost switch is the ST-9’s secret weapon – This unassuming switch completely changes the character of the pedal, adding beefy low end and increased saturation via a LP filter and an alternate set of clipping diodes.

If this wasn’t enough, the ST-9 also offers 9- or 18-volt operation via an internal charge pump.  Run at 9 for the classic 808 sound and feel or switch to 18 for increased headroom, improved dynamics, and a bigger, chunkier tone to the overdrive.

From bluesy overdrive to diabolical dirt box, the ST-9 is a devilishly diverse pedal that can punish a clean amp or turn a dirty amp into a wall of doom.

The OD808 re-imagined with increased output level, additional saturation and a more diverse palette of tonal options.

Updated Reissue of 1980’s Super Tube Screamer
Circuit Based on classic OD-9/OD808
Dedicated Midrange knob to dial in amount of mid boost
Low Boost Switch adds low end punch – great for single coils
9-volt or 18-volt regulated operation (switchable)
True Bypass Switching

Input Impedance: 500K Ohms
Output Impedance: 10K Ohms or less
Maximum Gain: 51dB (2.2 kHz)
Equivalent Input Noise: -115dB or less (IHF-A)
Control: MID ENHANCE, DRIVE, TONE, LEVEL
Switch:
  • Bypass/Effect, Voltage Switch (9V/18V)
  • MODE Switch (CLASSIC/LOW BOOST)

Indicator: Bypass/Effect LED, 9V LED, 18V LED
Internal Circuit Voltage: 9VDC / 18VDC (DC / DC Converter)
Power Consumption: 12mA/9VDC, 36mA/18VDC
Dimensions: 74 (W) x 124 (D) x 54 (H) mm
Weight: 610g (including battery, excluding AC adaptor
Power Supply: 6F22 / 6LR6 9V battery x 1 or Maxon AC adaptor
Standard Accessory: AC adaptor AC2009, user's guide
