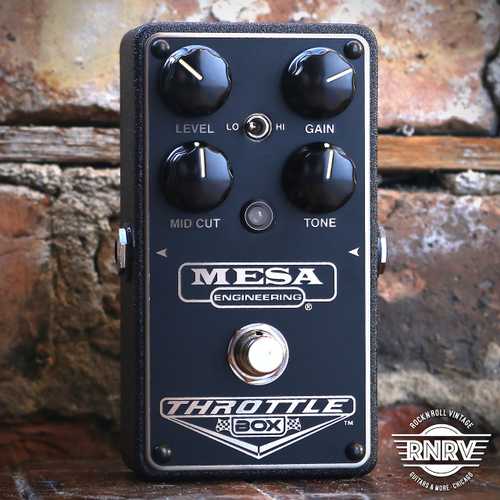

Mesa Boogie Throttle Box

The THROTTLE BOX™ Distortion serves up all genres of ROCK with cut and aggression, but retains the signature warmth and organic sonic quality found in all our amplifiers. While its main strengths lie in higher-gain sounds, it is quite versatile and it’s lower gain options shouldn’t be overlooked for classic rock or howling blues. The THROTTLE BOX also features a unique MID CUT that scoops out midrange to produce the signature Boogie® “V” EQ-curve that so many artists have employed in our amps to create the world’s heaviest guitar tones!

PRODUCT FEATURES:
Designed and Handcrafted in Petaluma, California, USA
True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss
Gain Control allows you to dial in the perfect amount of classic to modern high-gain
Lo/High Gain Switch provides classic crunch to modern meltdown
Master Level Control provides a variable range of signal boost up to +20dB
Tone Control balances the amount of high frequencies
Mid-Cut Control provides powerful mid-scoop for modern high-gain styles
Internal EQ-Boost Switch provides added style/voicing option
On/Off Status LED
9V Battery Powered or Externally Powered (optional) via External Power Jack Input
Input & Output Jacks (Nominal Input -20dB)

SPECIFICATIONS
Dimensions (W/D/H): 2.87" x 4.77" x 2.28" (73mm x 122mm x 58mm)
Weight: 0.865 lbs. (393g) with battery, 0.765 lbs. (347g) without battery
True Bypass Switching
Battery Type: 9VDC (one)
Power Consumption (Current Draw): 9VDC/25mA
External Power Supply (Not Included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.
Input Impedance: 1M Ohm (500k Ohm minimum)
Output Impedance: 10k Ohm
