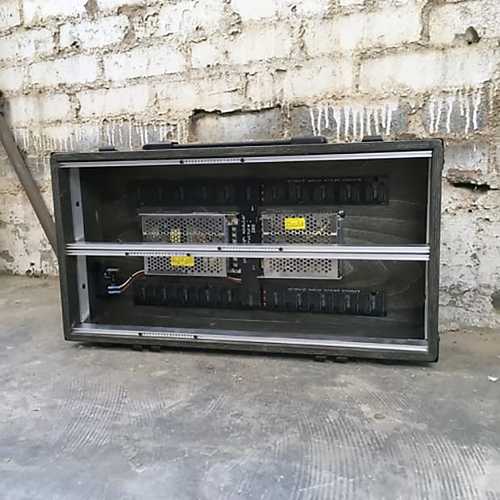

Pittsburgh Modular Structure EP208 208hp Modular Case
Maximum power for a new generation of eurorack modules. A serious double row, 208hp powered eurorack travel case with detachable lid. Includes a heavy duty, rock solid power supply reliable enough for the toughest tour schedule.
EP-208 Power
- 4 Amps of Clean, Filtered +12v Power
- 3 Amps of Clean, Filtered -12v Power
- 2 Amps of Clean, Filtered +5v Power
- Case Wide 2 Channel Eurorack System Bus
- 40 Keyed 16 Pin Eurorack Power Headers
- External Power Switch with LED
- Fused Power Protection
- Universal IEC Power Connector
- 2 EMI Filters Protect All 3 Power Rails (+12v, +5v, -12v)
- Low Output Ripple & Noise
- UL & CE Approved, ROHS Compliant
- Over Load and Short Circuit Protection
- Line Regulation (Full Load): ≤0.5%
- Output Over Load Protection: 10%-150% Hiccup Mode with Auto-Recovery
EP-208 Enclosure
- Hardwood and Aluminum Construction
- Two 104hp Rows
- 208hp Total Space Available
- Removable Lid
- Lid Fits Over Fully Patched System (No need to remove patch cables)
- Edge to Edge Rails Reduce Gaps Between Modules and the Side of the Case
- 20 Smooth Sliding Square Nuts Per Rail Ensures Modules Always Fit Perfectly (Holds up to 40 modules)
- Includes 80 Black (Size 4-40 1/4") Module Mounting Screws
- Beautifully Hand-Stained Hardwood
- Matching Black Steel Hardware Set
EP-208 Dimensions
- External Case Depth with lid: 9 1/4”
- External Case Depth without Lid: 5 1/2”
- External Case Height: 12 1/4”
- External Case Width: 22”
- Internal Base Depth Above Power Supply: 2 3/4”
- Internal Base Depth Above Bus Board: 3 3/4”
- Internal Base Depth Above Nothing: 4 1/4”
- Internal Lid Depth: 2 3/4"
- Empty Weight: 18 lbs
