Description

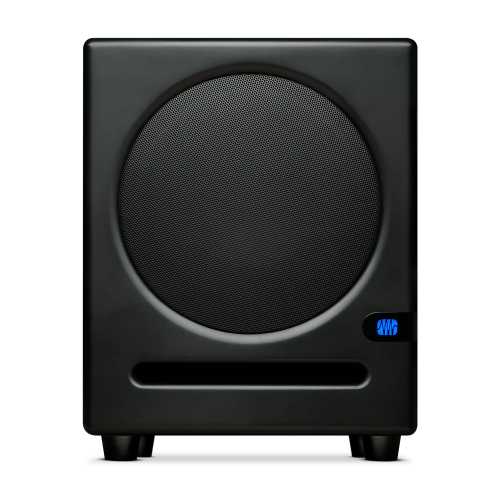

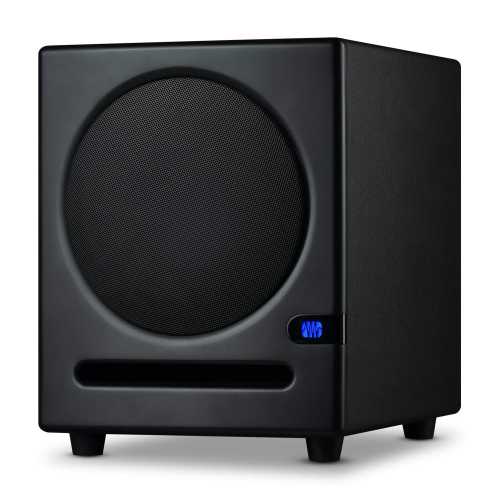

The Eris Sub8 is the first subwoofer to join the lauded and best-selling Eris studio monitor line. We called it Eris because it’s been designed from the ground up to be part of the family; it compliments the voicing and frequency response of the modern Eris classics. Of course, they’ll play nice with other monitors, too, but if you’ve got a pair of Eris in your home or studio already, the Eris Sub8 is the single best subwoofer you can get to put a little boom in your room.

Maximize your frequency response and accuracy.
The surprisingly loud 100 watt Eris Sub8 drops down to a molar-rattling 30 Hz—a full 50 Hz below the Eris E3.5s. This allows you to both rock harder and produce better mixes, as you’ll be hearing an accurate representation of your work. For EDM and hip-hop producers, in particular, a subwoofer is a must-have. The Eris Sub8 lets you naturally extend the reach of your Eris E3.5 or E4.5 monitors in a manner appropriate to smaller rooms—exactly where these monitors excel.

Total control and connectivity.
Thanks to robust configuration and I/O, you’ll be able to tailor your Eris Sub8 configuration exactly to your mixing and listening needs. You can connect your existing monitors via ¼-inch TRS or RCA connections, set the input level to your liking, and even invert the polarity. Most importantly, you get a high-pass filter and a low-pass crossover control that ensure your Eris Sub8 starts working at the precise low-frequency point where your main monitors stop. This makes sure you avoid the flabby, smudged, low-end mess that one hears in redundant, duplicate, redundant bass reproduction that occurs without a crossover.

All work and all play.
While we’ve designed the Eris Sub8 to compliment our smaller-form Eris media reference monitors, we also know that gamers, partiers, and movie buffs all enjoy some room-rattle now and again. So rest easy knowing that the Eris Sub8s will upgrade the performance of any powered speaker configuration in a home theater or gaming rig.

Accuracy defined.
When you hear the low-frequency foundation of your mix accurately, you can make more informed decisions and create more translatable mixes. You’ll also have more fun.

Ala Kazam!
Did you know? PreSonus studio monitors and media reference monitors include a special edition of Studio Magic, a suite of over $1000 USD worth of music software including Studio One Prime and more plug-ins, loops, virtual instruments, effects, and tutorials than you may ever need. The Magic edition of Studio One Prime is compatible with all of the included plug-ins, of course, and because they're included in VST, AU, and AAX formats, you can also use them in any DAW you’d like.

It doesn't matter if you’re working on your first podcast episode or your tenth Grammy—you'll find yourself conjuring from the book of Studio Magic sooner than later. Have fun!

  • 8-inch, front-firing, paper-composite low-frequency transducer with high-elasticity rubber surround
  • Class AB amplifier: 100W peak (50W RMS) power
  • Input gain control (-30 dB to +6 dB, continuously variable)
  • Continuously variable lowpass filter (50 Hz to 130 Hz)
  • Defeatable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Eris Sub8 outputs to the main speakers

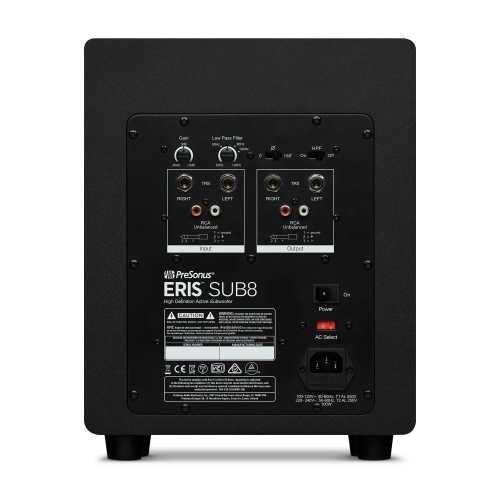

  • Left and right, balanced ¼-inch TRS and unbalanced RCA main inputs
  • Left and right, balanced ¼-inch TRS and unbalanced RCA pass-through outputs for connecting satellite speakers
  • Polarity invert switch
  • Protection: RF interference, output-current limiting, over-temperature, turn-on/off transient, subsonic filter, external mains fuse

Inputs
  • 2- Balanced ¼” TRS
  • 2- Unbalanced RCA

Outputs
  • 2- Balanced ¼” TRS (full range with 80 Hz HPF option)
  • 2- Unbalanced RCA (full range with 80 Hz HPF option)

Frequency Response: 30 Hz – 200 Hz
Low Pass Filter Frequency: 50 – 130 Hz (variable)
Signal-to-Noise Ratio: >95 dB (A weighted)
THD: 0.05%
Amplifier Power: 100W peak, 50W RMS
Power Consumption: 100W
Amplifier Type: Class AB
Peak SPL at 1m: 113 dB
Woofer: 8” paper-composite with high-elasticity rubber surround, front-firing
Acoustic Port: Front-firing bass reflex

Input Gain Range: -30 to +6 dB
Polarity Switch: 0° or 180°
Low Pass Filter Control: 50 Hz to 130 Hz
High Pass Filter Switch: On/Off

Protection
  • RF interference
  • Output-current limiting
  • Over-temperature
  • Turn-on/off transient
  • Subsonic filter
  • External mains fuse

Power: 100-120V ~50/60 Hz or 220-240V ~50/60 Hz

Cabinet: Vinyl-laminated MDF

Width: 9.8” (250 mm)
Depth: 12.75” (324 mm)
Height: 11.6” (295 mm)
Weight: 16.3 lbs (7.4 kg)
Chicago Music Exchange

Chicago Music Exchange

Call
Presonus
Brand New
15 Years
$199.95
