Guitar Amp Simulator & DI Box
The JDX Direct-Drive is a unique and powerful device that emulates the sound of a guitar amplifier while doubling as a direct box, providing a realistic amp sound that allows you to play a gig without needing an amp on stage.
Classic amp tones in a compact pedal

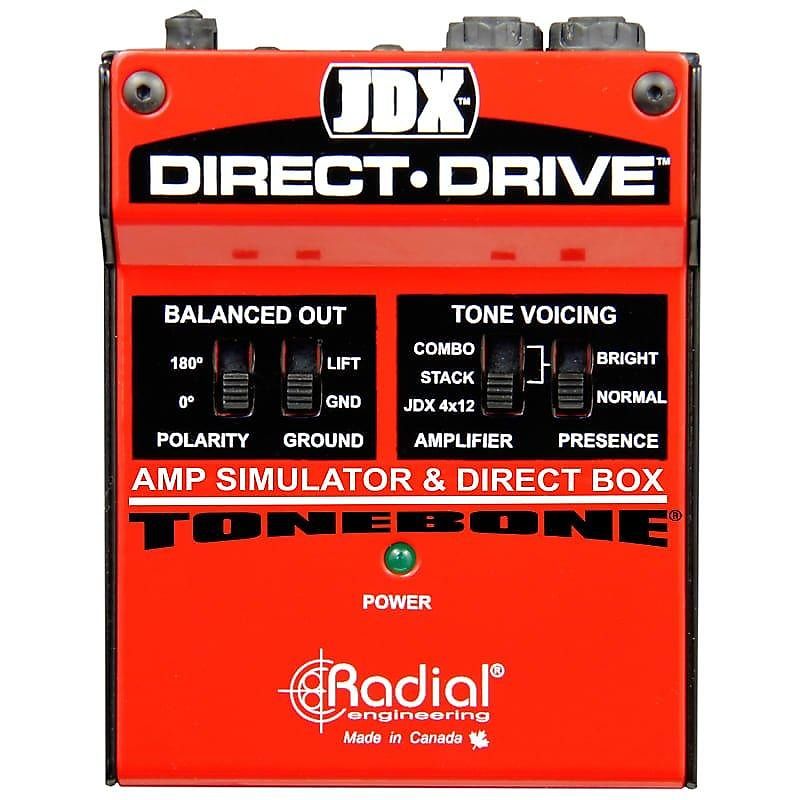

The Direct-Drive is an amp simulator designed for your pedalboard, providing a realistic amp tone that can be connected directly to the PA system. Three amplifier voicing options are provided: the first is the popular JDX tone which simulates the sound of an SM57 microphone on a 4x12 cabinet. The second setting is similar in character to a British tube head amplifier, while the remaining tone is modeled after a clean twin combo amp. With three classic voicings available, the Direct-Drive provides a natural amp tone through the PA system and consistency from night to night.
Specifications
- Audio circuit type: Class-A BiFET input buffer with electronic frequency shaping circuitry
- Frequency response: Shaped for guitar use
- Dynamic range: 83dB to 100dB
- Clip Level: > +5dBu
- Intermodulation Distortion: >0.1 @ -15dBu Out
- Output Impedance: 600 Ohms (XLR) 100 Ohms (1/4")
- Noise: -78dBU
- Maximum Input: > +5dBu
Features
- 180° polarity reverse, Ground lift, Speaker filter

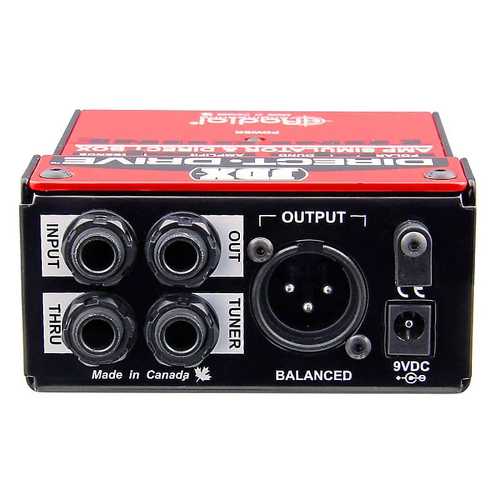

- Input Connectors: 1/4"
- Output Connectors: 1/4" thru and amp tone output, XLR
- Extras: Always on Tuner Output
General
- Construction: 14-gauge steel chassis and outer shell
- Size (L x W x D): 4.75" x 3.625" x 2" (121 x 92 x 51mm)
- Shipping weight: 1.6 lbs. (.7 kg)
- Power: 40mA, 9VDC (center pin negative)
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
