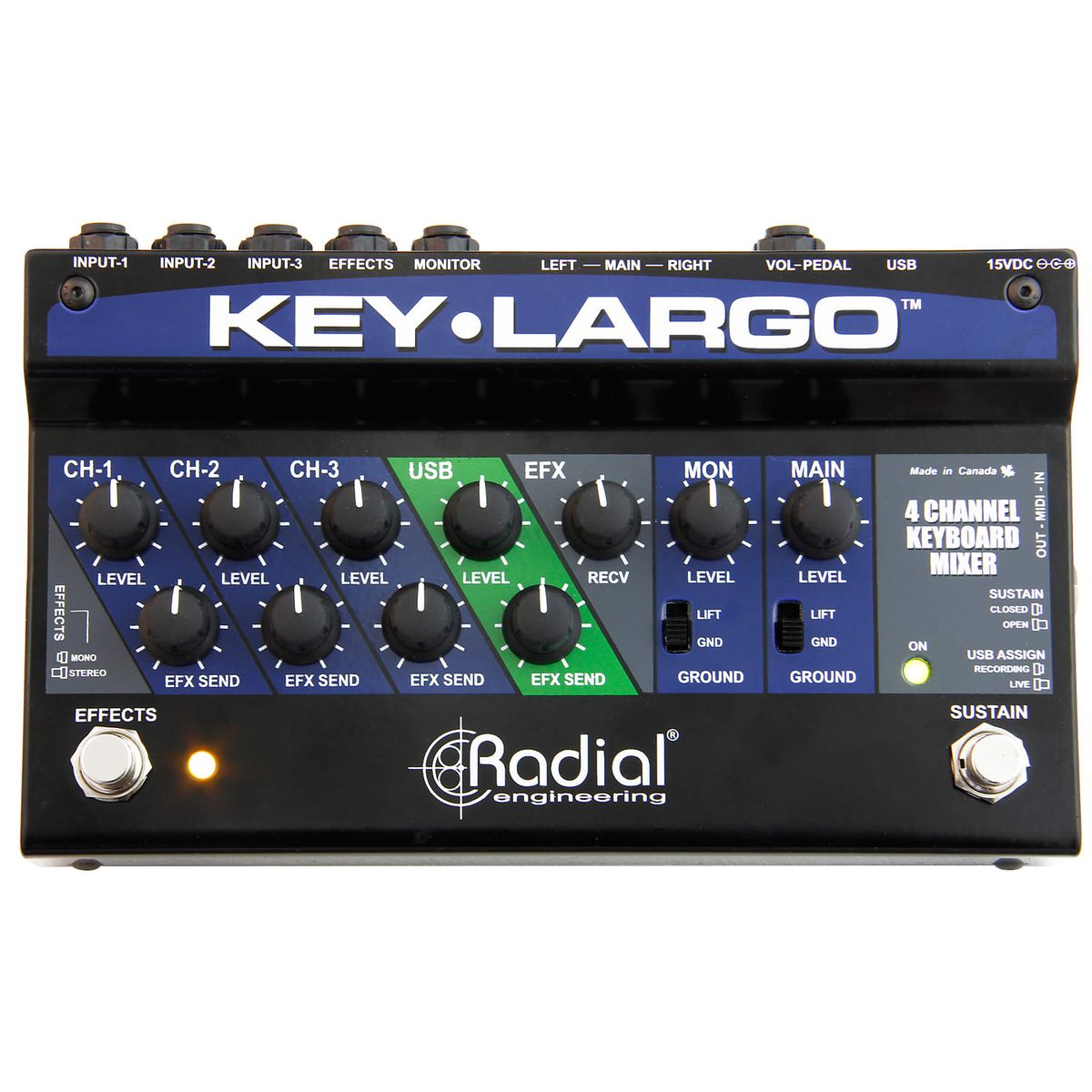

Keyboard Mixer, USB Interface and Performance PedalThe Key-Largo is a unique and powerful device that combines a multi-channel keyboard mixer with a USB audio interface, while providing the ability to control elements of the performance with footswitch control.
A mixer for today's gigging keyboard playerDesigned for stage use, the Key-Largo allows you to connect up to three stereo keyboards, effects and volume pedals, and a laptop computer via USB, managing all these signals to send a balanced audio feed to a PA system for a seamless performance on stage. Three stereo analog inputs feature individual volume controls to balance levels, and each can be sent to a shared effects loop to add reverb or delay in an instant using a dedicated footswitch. A USB connection allows laptop computers to be integrated into the setup for control of soft-synths, and a built-in sustain footswitch and connections for a stereo volume pedal provide additional ways to control your performance.
Specifications - Audio circuit type: Active circuit with audio-grade operational amplifiers
- Number of channels: 3x stereo analog inputs, 1x stereo USB input, 2x stereo analog outputs
- Frequency response: 20Hz - 20kHz ±0.5dB
- Gain: +12dBu
- Clip Level: +12dBu
- Total harmonic distortion: <0.005% @ 1kHz
- Input Impedance: Analog 20k Ohms
- Output Impedance: XLR: 300 Ohms 1/4": 450 Ohms
- Noise: -91dBu
- Noise: 24bit / 192kHz
Features- 180° polarity reverse, Ground lift, Level Control, Effects Loop

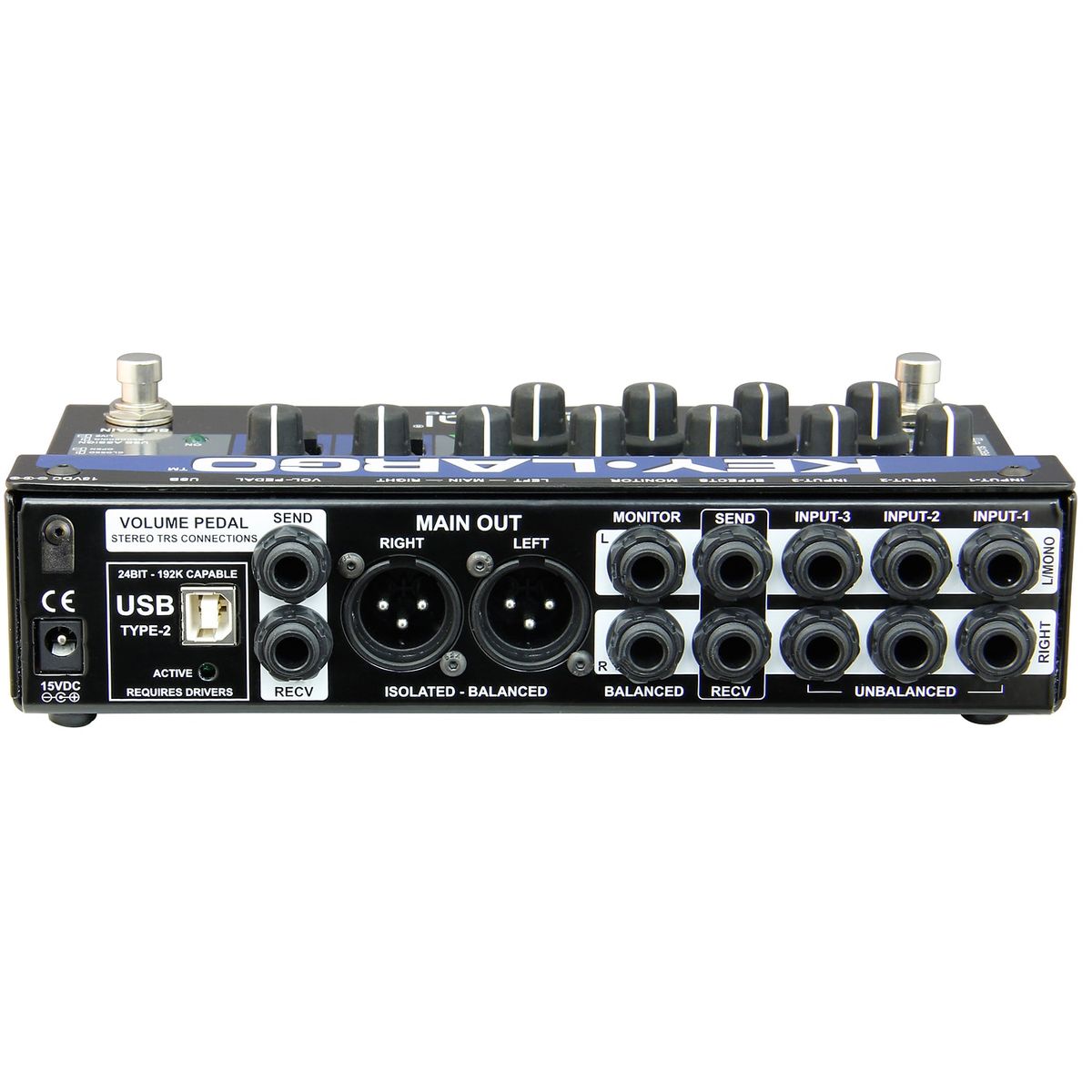

- Input Connectors: 3x Stereo Analog Inputs, 1 x Stereo USB Input
- Output Connectors: Stereo XLR Balanced Outputs, Stereo 1/4" Monitor Outputs
- Extras: Performance or Recording Mode
General- Construction: 14-gauge steel
- Size (L x W x D): 8.4" x 5" x 1.9" (21.3cm x 12.7cm x 4.8cm)
- Weight: 3.25lb (1.47kg)
- Shipping size (L x W x D): 13.3" x 5.1" x 3" (33.7cm x 13cm x 7.6cm)
- Shipping weight: 4.3lb (1.95kg)
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
