Description
Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. The SYSTEM-500 is made to exacting standards with top-quality components and solid controls, with a collaborative production process between Portland, USA and Hamamatsu, Japan. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

Classic System. New Format.
The SYSTEM-500 consists of Eurorack format modules that you can mix and match in any combination to create the ultimate Roland modular synthesizer. Each module is completely analog and has been designed for maximum compatibility with the world of contemporary synthesizer and effects modules. The SYSTEM-500 is a compact, powerful system that opens up vast possibilities for sound design and musical exploration.

512 Dual VCO
The 512 Dual VCO (voltage controlled oscillator) is a single module consisting of two voltage controlled oscillators. Each independent VCO produces frequencies across a wide range with 1V/octave tracking and dedicated pulse, triangle, and saw wave outputs. Variable pulse width is available via panel control or CV modulation. Each oscillator’s frequency can also be synchronized to the other in weak or strong modes to achieve a unique “sync” sound.

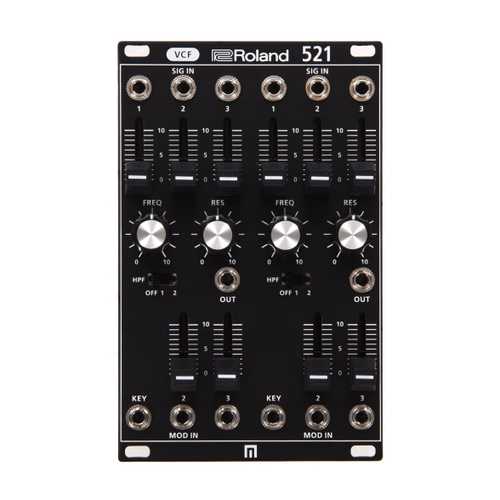

Controllers:
  • SIGNAL IN 1 slider
  • SIGNAL IN 2 slider
  • SIGNAL IN 3 slider
  • MODULATION IN 2 slider
  • MODULATION IN 3 slider
  • HPF switch
  • FREQUENCY knob
  • RESONANCE knob

Connectors:
  • SIGNAL IN 1 jack: Miniature phone type
  • SIGNAL IN 2 jack: Miniature phone type
  • SIGNAL IN 3 jack: Miniature phone type
  • OUT jack: Miniature phone type
  • KEY IN jack: Miniature phone type
  • MODULATION IN 2 jack: Miniature phone type
  • MODULATION IN 3 jack: Miniature phone type

Power Supply: Eurorack power

Current draw:
  • 40 mA (+12 V)
  • 40 mA (-12 V)

Accessories:
  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
  • Eurorack installation screws (4 pcs)
  • Eurorack power cable

Width: 3-3/16 inches
Depth: 2-5/16 inches
Height: 5-1/16 inches
Weight: 8 oz
