Offered for sale;
Now available from Imperial Guitar & Soundworks!!!
New RN17 Pencil Microphone Factory-Matched Stereo Pair serial numbers RN170518A&B.
"These microphones have been opened and plugged in and have about 2 hours of demo time at our friend Kevin McMahon's [24 track analog tape & pro tools] studio Marcata Studio in New Paltz NY."
MSRP $2499.00 - Regular Discount $1999.00 - IGS Demo Price - $1799.00
Designed with Mr. Rupert Neve, the RN17 redefines the capabilities of an SDC
This is the world's first pencil microphone with a large-scale, hand-wound, ultra high performance transformer.
The second product of the sE / Rupert Neve collaboration, work on the RN17 began with a discussion between Rupert and Siwei Zou on the merits and problems of small-diaphragm condensers.
According to Siwei, "The SDC's problem is that they have a very clear sound - the SPL is high, but the sound is very cold, not like with a large diaphragm. The quality of the transformer can make the sound much, much better - but with a small transformer, nobody can do it."
"Rupert told me, 'I want THIS transformer.' I said, 'That transformer is too big. This is a small-capsule microphone. Impossible.' He said, 'I want the impossible to be possible.'"
THE SMALL DIAPHRAGM
With a 15mm diaphragm (the world's smallest production gold-sputtered diaphragm), the transient response of the RN17 is unparalleled.
Such a small capsule reacts extremely quickly, and is therefore adept at picking up the most delicate of high-frequency content.
However, a tiny diaphragm usually results in a lack of low-frequency response. How to counter this?
THE MASSIVE TRANSFORMER
Made obvious by the unusual chassis shape, the RN17's transformer is substantially larger than the norm. This full-scale transformer was custom-designed by Rupert Neve specifically for this microphone - and nobody has been designing audio transformers longer (or better) than Rupert Neve.
With an audio transformer of this magnitude, the RN17 is able to put out astonishing clarity across ALL frequencies - not just the highs. The midrange is detailed and forward, the lows are full and accurate, and the whole microphone has a balance and headroom never before achieved with a small-capsule microphone.
MATTE BLACK FINISH
The matte black finish minimizes the level of visual attention drawn to the microphone when used on stage or in the studio, allowing it to blend into the background.
The RN17 ships standard with a cardioid capsule, but an omnidirectional capsule is also available for purchase separately.
CUSTOM SHOCK MOUNT
Every RN17 includes a custom-designed, sturdy, protective, and easy-to-use shock mount, which is essential to reducing the unwanted effects of vibration or knocks to the supporting microphone stand.
RN17 Factory-Matched Stereo Pair
When purchased as a pair, the transformers and cardioid capsules are factory-matched for perfect tolerance, guaranteeing the best possible stereo image.

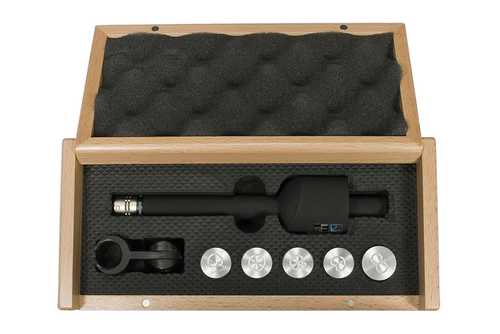

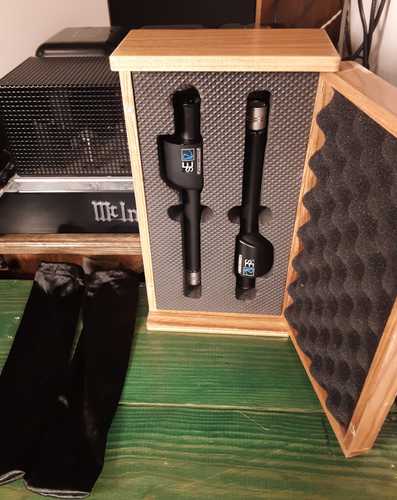

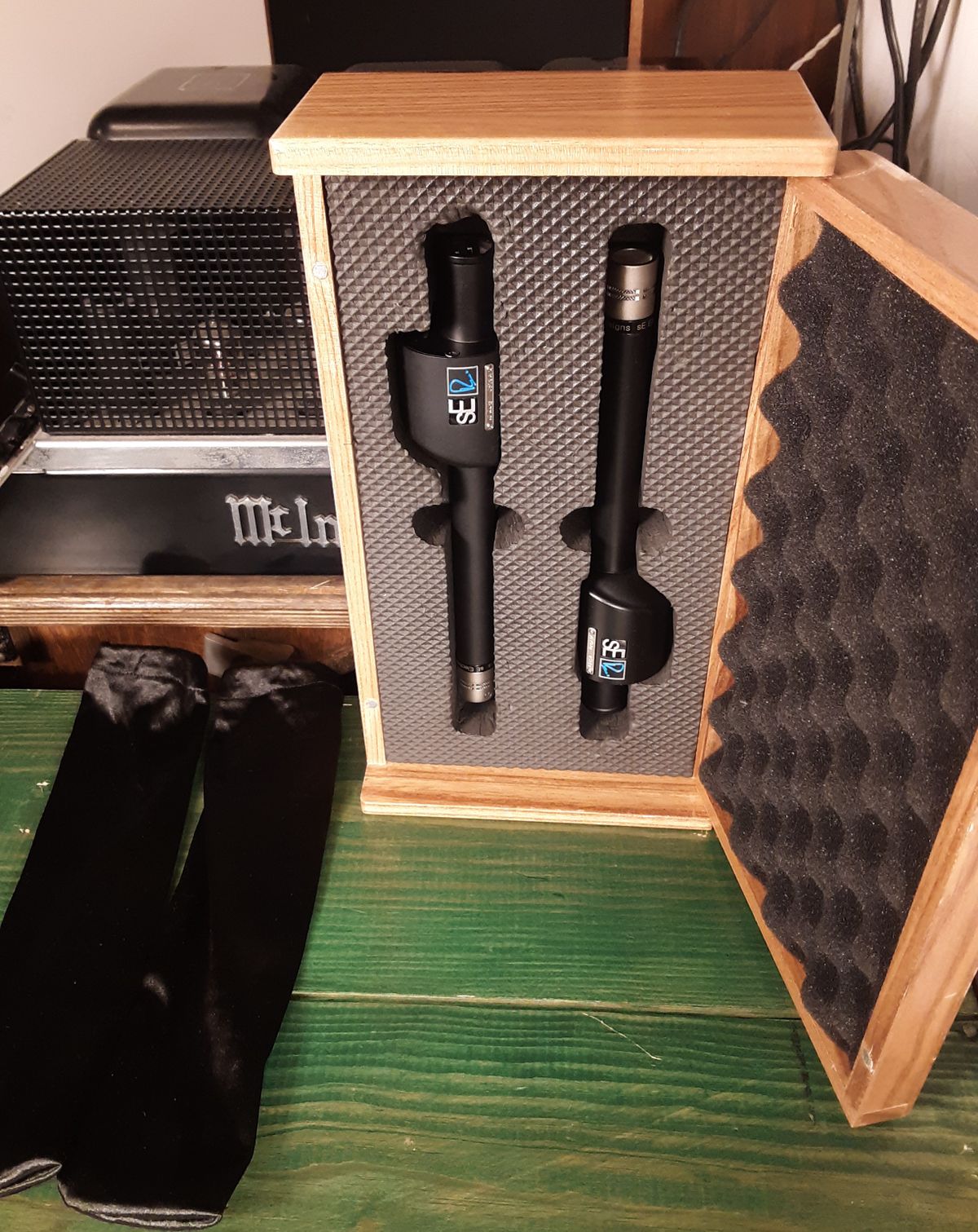

This configuration also includes a precision stereo mounting bar, two shock mounts, a wooden presentation case, and empty canisters for future capsule additions. The whole setup comes packaged inside a secure flight case.
Especially when used with an RN17 Stereo Pair, these omnidirectional capsules can be used to capture amazing room effects for drums, pianos, and orchestras. Available separately in singles or pairs.
Matched Pair of R17 with Shockmounts B57 and custom case $1799.00
Capsule Type: Hand-Crafted True Condenser
Diaphragm: 17.2mm Gold/Mylar
Directional Pattern: Cardioid (omnidirectional capsule available separately)
Frequency range: 20 Hz - 20 kHz
Impedance: 200 Ohms
Sensitivity: 5.96 mV/Pa (-44.5dB)
Sensitivity (Figure-8): 2.51 mV/Pa (-52dB)
Max SPL: 131 dB (0.5% THD @ 1kHz)
Signal to Noise Ratio: 76 dB
Self Noise: 18 dB(A) (cardioid), 15 dB(A) (omni)
Matching Connectors: XLR3F
Power requirement: 48V phantom
Weight: 320g / 11.32oz
Diameter: 44 mm (transformer), 17mm (capsule)
Length: 200 mm

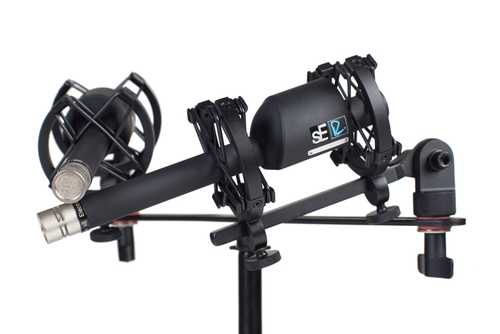

Stereo Bar (Matched Stereo Pair Only)
Weight: 245 g / 8.64 oz
Dimensions: 300 x 25 mm
Max. width between mic mounts: 276 mm
Min. width between mic mounts: 58 mm
This is a specific item that is also being offered for sale in our brick & mortar location. It is possible that it has just been sold. Please ask if it is still available before purchasing.
*It is our policy to require a signature on delivery of all musical instruments. Please let us know if you prefer no signature required when ordering or we will automatically require a signature.
If you prefer your item to be sent without a required signature Imperial Guitar and the selected carrier can no longer be responsible for the security of the package once it has been delivered.
We accept VISA, Mastercard, Discover, and American Express, as well as certified checks and bank-to-bank wire transfers. Trades and consignments also welcome. Bank to bank wire transfers seem to work best on foreign orders.
All shipments made by us are fully insured. Also, all new products are fully covered by the manufacturer's warranty and used gear usually carries our 30 day mail order warranty. Most stringed instruments sold by IGS are shipped UPS Ground service for $50.00 to $100.00 for the 48 Contiguous states. (Overnight Red Label is also available). Please call on each item. GUITAR FREIGHT (Foreign) We ship instruments world wide. Our shipping department prides itself in its ability to safely deliver guitars anywhere in the world. We use Fex Ex Great Rates service, wherever possible. You are responsible for any import duties, V.A.T., etc. on delivery. It is advisable to consult with your local customs office.
48-hour approval on most items
