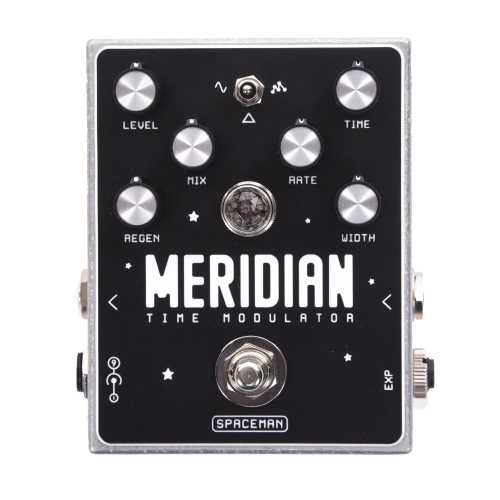

The Meridian is our most flexible, and sophisticated modulation effect to date, and will instantly whisk you into another dimension. Its refined control layout makes it intuitive to navigate through a staggering array of liquid chorus tones, rubbery pitch vibratos, vocal flange effects and more. The MN3007 analog bucket brigade IC at the heart of the Meridian has a delay time range of 0.8ms to 50ms making it simple to cover a plethora of time based effects. The high quality signal path surrounding the delay line has been optimized with noise-reducing companding, and custom filtering to keep the tone clear and articulate while providing all the analog warmth BBDs are known for.

The modulation section offers three waveshapes: sine and triangle for classic chorus, vibrato, and flange sounds, and an experimental flux waveshape for off-kilter, slithering, seasick tones that can also add intriguing movement when used subtly.  Rate and Width may be controlled via expression pedal or 0-5V CV. Additionally the LFO may be disconnected opening up double tracking, and comb filter sounds. Negative feedback can be added to the delay line via the regen control for a focused vocal quality that is especially useful at short delay times. The utility of the Meridian is enhanced by a mix control capable of sweeping from 100% wet to 100% dry, and a dedicated level control, something often missing from modulation effects. Transit the Meridian and effortlessly flow across the quantum boundary, warping and bending time to your will.

Meridian Features:

  • All analog signal path
  • High headroom MN3007 bucket brigade delay IC
  • 0.8ms-50ms delay time
  • Easily dial in chorusing, vibrato, flanging, double tracking and more
  • Wide range LFO with Sine, Triangle, and Flux waveshapes
  • LFO speed 0.12Hz (8 seconds) to 15Hz (65ms)
  • Noise-reducing compander, and custom tuned filters
  • CV/EXP options for controlling Rate, Width, and delay time
  • Mix control for fully wet or dry tones and a dedicated Level control

Hand-wired and built in Portland, Oregon, the Meridian features true-bypass relay switching with a soft-touch footswitch. On top of the cast-aluminum enclosure sits a durable, engraved vinyl faceplate and jewel indicator light. This pedal is built to last a lifetime, both on Earth or in the vacuum of space.

Width: 3.68 inches / 93.5 mm
Depth: 4.73 inches / 120 mm
Height: 2.25 inches / 57 mm
Weight: 14.6 ounces
Input Resistance: 1 Meg Ohm
Bypass Current Draw: 32mA
Engaged Current Draw: 58mA
EXP / Control Voltage: 0-5V DC TRS Jack - Over / Reverse voltage protected
Input Voltage: 9V DC, negative center via the 2.1mm jack
