Description

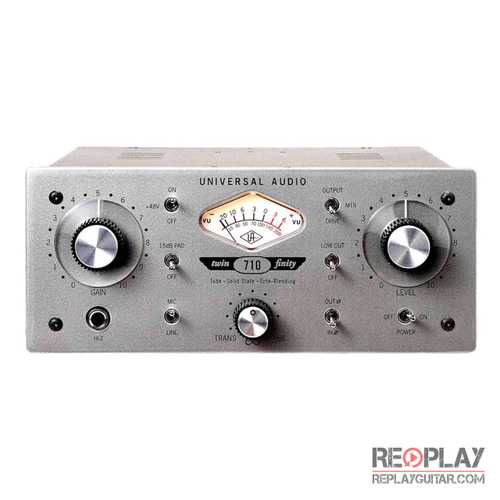

The award-winning 710 Twin-Finity™ is a radical UA mic preamp design that combines both the classic retro warmth of tubes with the transient bite of solid-state, all in a 2U, half-rack unit. The 710 was created specifically to add the tonal versatility and sonic inspiration missing from generic audio interface preamps.

Tone blending is continually variable between 100% tube and 100% solid-state, offering a practically infinite range of unique preamp tones, plus the ability to easily dial-in your own signature sound. There are lots of sensibly priced solid-state and tube preamplifiers out there, but the 710 Twin-Finity is the only one that offers the best of both worlds — as well as everything in-between — all in one box, and within reach of any serious project studio’s budget. Includes a 19" rack-kit for mounting one or two units.

  • Twin-Finity™ Tone-Blending Mic/Line Preamp & Hi-Z Instrument DI
  • Dual-Path 310 volt Class-A Tube and Transimpedance Solid State Preamp
  • Phase-Aligned "Tone-Blending" of Tube and Solid State
  • Dual Gain Stages: Wire with Gain to Creamy to Crunchy
  • Discrete JFET DI with 2.2M ohm Ultra Hi-Z impedance
  • Monolithic Balanced Output Stage
  • 70dB+ of gain, +48V Phantom, Pad(-15dB), Phase Invert, and Low Cut Filter(75Hz)
  • Output and "Drive" backlit VU metering
  • Portable, Rack-Mountable design for Studio, Desktop or Stage
  • 19” Rack Kit Included
  • Front Panel Hi-Z Input (switched from Mic/Line automatically via Jack Detect)
  • Rear Panel XLR Mic Input, XLR Line Input and XLR Line Output
  • Universal Internal Power Supply
  • Heavy-Duty Metal Construction
  • Inputs
    Microphone (Female XLR)
    Balanced Line (Female XLR)
    Unbalanced Instrument (1/4" jack) (D.I.)
    Outputs
    Balanced Line (Male XLR)
    Tube Complement
    12ax7
    Pad
    -15dB
    High Pass Filter
    75Hz
    Maximum Power Consumption
    160mA @120VAC, 20W
    Power Requirements
    100-240VAC
    Dimensions
    8.45W x 3.5H x 10.25D
    Weight
    5.25 lb
    Impedance
    Mic Input Impedance
    2K ohms
    Line Input Impedance
    10K ohms
    Hi-Z Input Impedance
    2.2M ohms
    Internal Output Impedance
    600 ohms
    Gain/Levels
    Gain Range for Unit
    -Infinity to 70dBu
    Mic Range Gain Pot
    10 ~ 60 dBu
    Line Range Gain Pot
    -10 ~ 40 dBu
    Hi-Z Range Gain Pot
    -10 ~ 40 dBu
    Frequency Response
    Mic Frequency Response
    20Hz to 100kHz +/- 0.2 dBu
    Line Frequency Response
    20Hz to 100kHz +/- 0.2 dBu
    Hi-Z Frequency Response
    20Hz to 100kHz +/- 0.2 dBu
    Distortion
    Min THD+Noise @ +4dBU
    0.1% tube 0.005% solid-state
