Description
From Zoom:

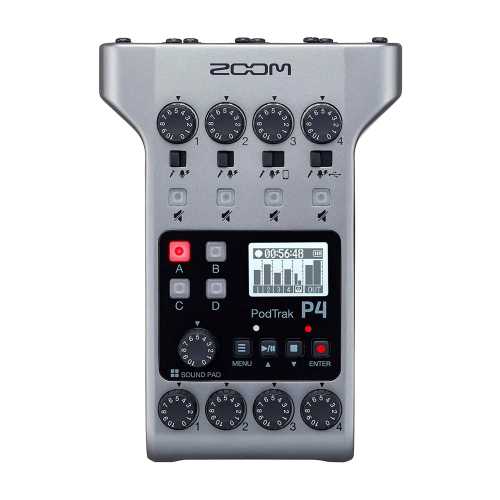

Compact, affordable, and loaded with features, the PodTrak P4 makes it easy to capture professional quality audio wherever you’re recording your podcasts.
  • Four mic inputs with XLR connectors
  • Four headphone outputs with individual volume control
  • Gain control knobs and mute buttons for each input
  • Phantom power for all XLR inputs
  • Automatically prevent feedback from call audio using the Mix-Minus function
  • Easily connect your phone using the TRRS connection
  • Trigger sound effects using four assignable Sound Pads with 11preset sounds
  • All input sources can be recorded on separate tracks
  • 16-bit /44.1kHz audio WAV
  • Records directly to SD, SDHC and SDXC cards up to 512 GB
  • 2-input, 2-output USB audio interface
  • Class-compliant mode for iOS compatibility
  • Up to four hours of use with just two AA batteries or a USB power supply

INPUTS & OUTPUTS
NUMBER OF INPUT CHANNELS: 4 (mono/stereo)
NUMBER OF OUTPUT CHANNELS: 1 (headphone x 4)


CONNECTORS
MIC: XLR jacks (2: HOT)
SMARTPHONE CONNECTION JACK: TRRS mini jack (4 contacts, TIP: L, RING1: R,RING2: GND, SLEEVE: MIC)
USB: USB Type-C (audio interface and mass storage functions)
Note: Use a USB cable that supports data transfer. USB bus power is supported.
DC 5 V: USB Type-C (for power supply)
HEADPHONES: 3.5 mm stereo mini


PHANTOM POWER
PHANTOM POWER: +48 V


RECORDER
RECORDER: Formats: WAV 44.1 kHz, 16-bit, mono/stereo
Recording media: 4 GB−32 GB SDHC-compliant cards (Class 10 or higher);
64 GB−512 GB SDXC-compliant cards (Class 10 or higher)


AUDIO INTERFACE
AUDIO INTERFACE 44.1 kHz, 16-bit, 2-in/2-out


POWER
POWER: 2 AA batteries (alkaline, NiMH or lithium)
• We recommend using NiMH
AC adapter (ZOOM AD-17): DC 5 V/1 A (USB bus power is supported.)

EST. CONTINUOUS OPERATION TIME USING BATTERIES
Recording 44.1 kHz/16-bit/4ch audio to SD card (when 48 V is OFF and headphone impedance is 63 Ω)
Alkaline batteries: about 4 hours
NiMH batteries (1900 mAh): about 4.5 hours
Lithium batteries: about 9 hours
• The above values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.


MISC.
EXTERNAL DIMENSIONS: 112 mm (W) x 155 mm (D) x 47 mm (H)
WEIGHT (UNIT ONLY): 290 g
