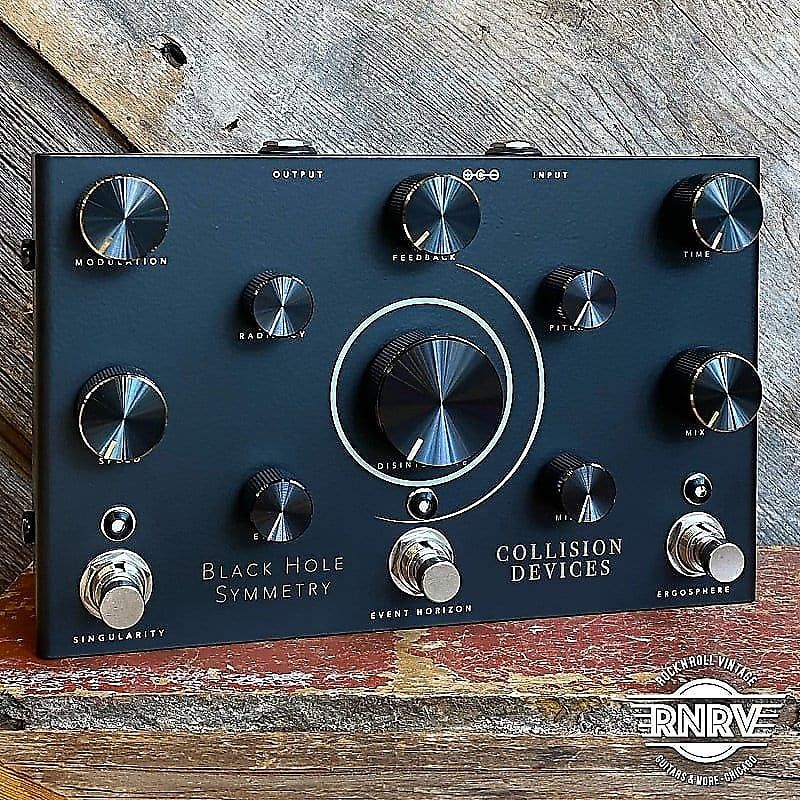

Collision Devices Black Hole Symmetry

Reach Infinity

Let’s dive into a Black Hole !

The Black Hole Symmetry is a Modulated Delay / Pitch shifted Reverb / Destruction Fuzz pedal.

Travel through the Ergosphere, the Event Horizon and the Singularity. The 3 parts of the pedal which can be played together or separately.

Each pedal is designed, assembled, tested and numbered by hand in our workshop in France.

The B.H.S. has a lifetime warranty.

3 EFFECTS, ONE PEDAL

SINGULARITY - Destruction Fuzz

• The single setting "Disintegrate" allows you to raise your sound.
• Forget the fact that your drummer plays loudly.

Settings :

• Desintegrate : Volume setting with a huge fuzz.
• Protect your ears please.

EVENT HORIZON - Pitch shifted Reverb

• Long reverb based on the FV1 chip.
• Harmonizes the reverb signal with a pitch shifter.

Settings :

• Mix : Proportion of wet signal in the mix
• Echo : Echo time (max 15s)
• Radiancy : Proportion of pitch shifter in the echo signal
• Pitch : Shifts the pitch of the note

ERGOSPHERE - Modulated Delay

• Based on the PT2399 chip to have a warm echo.
• The echo signal is modulated by two oscillators.

Settings :

• Mix : Proportion of wet signal in the mix
• Time : Time between each repetition (From 0s to 1s)
• Feedback : Number of repetitions
• Modulation : Proportion of modulation in the delay signal
• Speed : Speed of the main oscillator
• Trimmer : Speed of the triangle oscillator

Specifications

• Maximum current draw - 250 mA
• Input Impedance - 1 M Ohm
• Size - 186 x 119 x 56mm
• Voltage - +9V DC (negative center)
• Output Impedance - 1 K Ohm
• Weight -200gr
• The use of an isolated power supply is recommended for powering all Collision devices Pedals.
• Power supply not included.
• The pedal is true bypass
• Lifetime warranty
