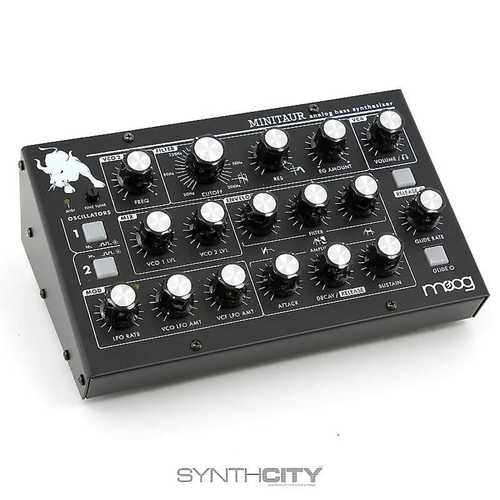

Moog Minitaur Analog Bass Synthesizer

NEW IN MINITAUR REV 2:

• Store 100 presets to Minitaur's internal memory.

• A new Decay/Release mode allows for independent control of Decay and Release times from Minitaur's front panel.

•Pitch, Volume and Gate Controller inputs can be re-mapped to other control parameters.

•Minitaur can now act as a CV to MIDI converter.

Front Panel Controls:

•VCO2 Frequency – Sets the frequency offset of VCO2 from VCO1 from -1 Octave to +1 Octave. Center is unison with VCO1.

•Oscillator 1 & 2 Saw/Square Waveform Selector – Selects a Sawtooth wave (LED OFF) or Square wave (LED ON) Signal for VCO1 and 2.

•VCO1 Level – Sets the level of VCO1

•VCO2 Level – Sets the level of VCO2

•VCF Cutoff – Sets the Cutoff Frequency of the 4-pole Moog Lowpass VCF from 20Hz to 20KHz

•VCF Resonance – This sets the gain for the amount of signal from the output of the VCF fed back to the input of the VCF. This creates a peak in Frequency response at the Cutoff Frequency that can be increased all the way to self-oscillation.

•VCF EG Amount – Bi-polar control sets the (+) or (-) Amount of Envelope Generator modulation of the VCF. Center is no Envelope Generator modulation.

•LFO Rate – Sets the frequency of the LFO. Range is from 0.01Hz to 100Hz

•LFO VCO Amount – Sets the Amount that the LFO modulates the VCO

•LFO VCF Amount – Sets the Amount that the LFO modulates VCF

•VCA EG Attack – Sets the attack Time of a Minimoog-Style ADSR Envelope Generator used to modulate the VCA. Time ranges from 1 msec to 30 seconds.

•VCA EG Decay/Release – Sets both the decay time to the sustain level and release time of a Minimoog-Style ADSR Envelope Generator used to modulate the VCA. Time ranges from 1 msec to 30 seconds. The Release segment of the EG is enabled by the Release On/Off switch.

•VCA EG Sustain – Sets the sustain level of a Minimoog-Style ADSR Envelope Generator used to modulate the VCA.

•VCF EG Attack – Sets the attack Time of a Minimoog-Style ADSR Envelope Generator used to modulate the VCF. Time ranges from 1 msec to 30 seconds.

•VCF EG Decay/Release – Sets both the decay Time to the sustain level and release time of a Minimoog-Style ADSR Envelope Generator used to modulate the VCF. Time ranges from 1 msec to 30 seconds. The Release segment of the EG is enabled by the Release On/Off switch.

•VCF EG Sustain – Sets the sustain level of a Minimoog-Style ADSR Envelope Generator used to modulate the VCF.

•Release On/Off Switch – Enables (LED On_ or Disables (LED Off) the Release segments of both Envelope Generators.

•Glide On/Off Switch – Enables/ Disables the Glide function

•Glide – Sets the rate of Glide when the note controlling the MINITAUR changes.

•Volume – The Master Volume of the MINITAUR’s synth Engine.

•Fine Tune – Adjusts the frequency of the VCOs +/- 1 semitone.

•MIDI Indicator LED – Indicates incoming MIDI activity

•LFO Rate Indicator LED – Indicates the rate of the LFO.

Back Panel:

•Audio Out – 1/4" Unbalanced jack.

•Headphones -- Jack for stereo headphone output.

•Audio In – 1/4" Unbalanced jack accepts line-level input.

Analog CV Inputs:

•Pitch CV – 1/4" TRS Jack accepts 0 to +5V signal (internally processed for 1 V/Octave) via passive Expression Pedals or CVs.

•Filter CV – 1/4" TRS Jack accepts 0 to +5Vsignal via passive Expression Pedals or CVs.

•Volume CV – 1/4" TRS Jack accepts 0 to +5Vsignal via passive Expression Pedals or CVs.

•Gate – 1/4" Jack accepts a 0 (Off)/ +5V(On) Gate signal to trigger the unit’s EGs.

MIDI:

•MIDI (DIN) – Standard DIN MIDI input for MIDI Control of the MINITAUR

•MIDI (USB) – Type B USB connector for connecting MINITAUR to host for USB MIDI.
