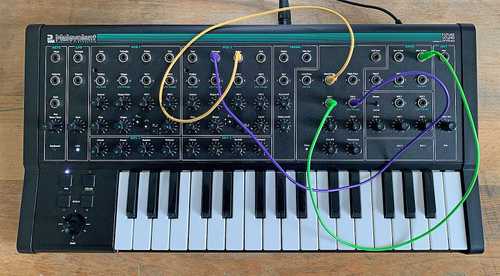

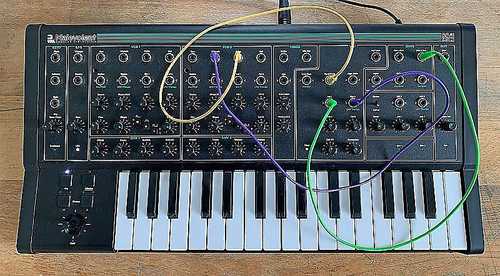

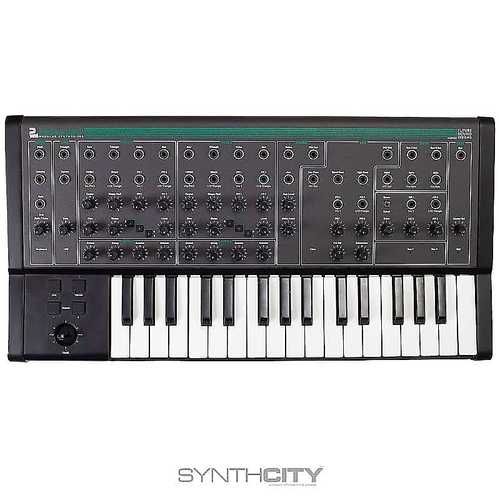

PWM Malevolent Analog Semi-Modular Synthesizer

Modular Pure Analogue Synthesiser

* Pure Analogue signal path designed by Future Sound Systems
* Pure VCOs
* 19 Outputs and 19 Inputs for 3.5mm mono jack cable patching
* Normalised signal path for immediate sound Malevolence
* Additional rear panel line out
* Additional headphone out

* 2 Voltage Controlled Oscillators
* Saw / Triangle / Pulse outputs plus Mix for each oscillator
* 1V/Oct pitch control input
* Shape control / pulse width modulation input
* 2x Frequency Modulation inputs
* Coarse / Fine tune control
* Shape mod amount control
* FM1 and 2 mod amount controls
* Shape control
* Selectable waveforms for the mix output
* Individual osc level control

* LFO (Low Frequency Oscillator)
* Triangle / Square wave outputs
* Rate control

* 2x Envelopes
* Individual ADSR controls for each envelope
* Individual gate inputs
* Individual envelope outputs

* Multi-mode 2 pole VCF (Voltage Controlled Filter)
* Low pass / Band pass / High Pass individual inputs
* 2x Frequency Modulation inputs with amount controls
* Filter cutoff
* Filter resonance

* Mixer
* Noise w/level control
* Aux input w/level control

* VCA (Voltage Controlled Amplifier) with overdrive control

* Compatible with Eurorack standard 1V/Oct gear

* Monophonic and patchable allowing individual pitch control of each VCO and gate control of each envelope

* USB bus-powered

* MIDI In / Out

* Headphone out

* Line out

* Analogue clock in & out

* USB-MIDI to 1V/Oct CV & gate conversion
* All pitch and gate control is fully analogue
* Analogue clock In / Out

* Multi-function Joystick control
* Left / right for pitch bend
* Performable portamento
* Performable vibrato
* This is in addition to the analogue LFO
* Latching hold mode

* Arpeggiator
* 6 arpeggiator types
* Up, Down, Up/Down 1, Up/Down 2, Played & Random
* Auto clock sync
* Detects analogue / MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
* Selectable sync rates when clock detected
* Rate / sync control
* Latch
* 6 Octave range
* Analogue / MIDI / USB-MIDI Clock output when arpeggiator is running

* Keyboard Control
* 32 Velocity-sensitive mini-keys
* Octave shift +/- 4 octaves
* Pitch output
* Velocity output
* Gate output

* Local Off mode for DAW use

Includes:
* 5 Patch cables

* Power Supply (9V 600mA)
* USB C lead

* Getting Started Guide

Weights and Dimensions:
Product (unboxed):
* 490 x 250 x 80 mm
* 2.61 kg

Product (boxed with contents):
* 690 x 320 x 160 mm
* 3.70 kg
