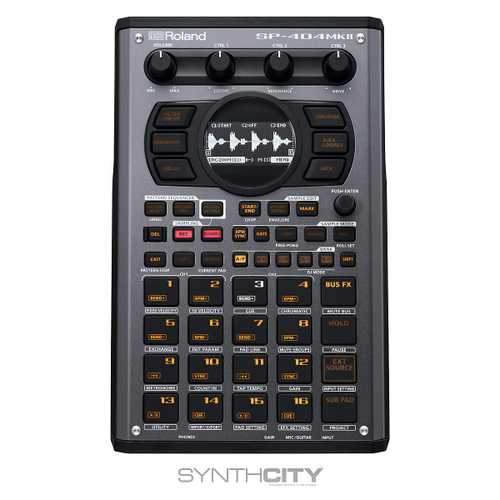

Roland SP-404MKII Linear Wave Sampler (In-Stock!)

Linear Wave Sound Sampler with OLED Display

The Roland SP-404MKII has everything you loved about its predecessor, but with added features such as 17 ultra-expressive pads and updated knobs for smoother control.

SP samplers feature rapid workflow, portability, and tactile approach. The SP-404MKII has a lightweight and rugged design while adding features that make it easier to create. Portable power with AA or mobile battery power allows you to capture audio from or stream directly to your mobile device via USB, or collaborate using the dual headphones outputs and mic/guitar input.

The SP404MKII’s OLED screen has zoomable waveform view. You can chop up samples by tapping out edit points in real-time, or use auto chop to slice samples automatically. Using envelope, pitch shift, and resampling workflow to re-record patterns and effects layers for detailed sound design. Make your sounds unique with SP effects. Use SP classics like Vinyl Simulator and DJFX Looper or some of the additions that include Lo-fi, Cassette Simulator, and Resonator.

Ready to use with the pre-loaded sounds included in the 16 GB of internal memory. There's plenty of samples to choose from or easily store your own.

The SP-404MKII allows for personalization with your own style or branding for a unique look. Grab the faceplate template from the Documentation Tab to create custom overlays. Customize your startup screen with personalized logos and select a screensaver.

Download and use the SP-404MKII App from Roland Cloud Manager with your Mac or Windows computer. This app allows access for more detailed waveform editing, assign samples to pads, and import MIDI files and legacy SP-404SX and SP-404A projects for remixing and updating.

Roland SP-404MKII Includes:
Quick start
"Read Me First" leaflet
Roland User Registration Card
AC adapter
Warranty card
Roland SP-404MKII Features:
Vivid OLED display for visual waveform editing, full menu access, and more
Versatile power options: USB-C, mobile battery (via USB-C port), six AA batteries, or AC adapter
17 velocity-sensitive, RGB pads with no-click design
16 GB internal storage
Lightweight design (2.4 lbs./1.1 kg)
32-voice polyphony, 160 samples per project, and 16 internal projects for expanded programming possibilities
Sample Editing with real-time or auto-chop mode, auto BPM detect, envelope, pitch shift, and resampling for layering sounds and phrases
Pre-loaded sound library with 144 samples and patterns
Removable metal faceplate, downloadable outline template, multiple screensavers, and personalized startup logos
I/O includes 1/4-inch line in/out, 1/4-inch mic/guitar input, 1/4-inch and 1/8-inch headphones outputs, and 1/8-inch TRS MIDI in/out
Audio capture and streaming supported with mobile devices and computers via USB-C
Skip Back Sampling to automatically capture up to 25 seconds of audio from last performance
Bus FX for layering multiple effects, with adjustable routing for creating intricate sound textures
Pattern sequencer with the ability to create full songs with BPM per bank
Chain patterns for automatic playback and use Pad Link to trigger up to four samples with a single press
DJ Mode for live performance
Roland SP-404MKII Specifications:
Maximum Polyphony: 32 voices
Recordable Data:
Samples = 2,560 (16 samples x 10 banks x 16 projects, stored in internal storage)
Patterns = 2,560 (16 patterns x 10 banks x 16 projects, stored in internal storage)
Internal Storage: 16 GB *Including preload data
Maximum sampling time: 16 minutes (approximately 176 MB per sample)
Skip Back Sampling: 25 seconds (capturing the last moments of performance)
Data format: 16-bit linear WAV, AIFF, MP3 import supported
Sampling frequency: 48kHz
Pattern Sequencer:
Resolution = 480 ticks, quarter note
Pattern length = 1 to 64 bars
Recording method = Realtime Loop Recording
Effects:
Multi-effects: 37 types
Input effects: 2 types
Pad: 16 pads + 1 sub pad (Velocity-sensitive pad)
Controller: Control knobs x 3
Display: Graphic OLED display
External Storage: SD card (sold separately) for backup, restore, import, and export functions (SDHC compatible)
Connection terminals:
PHONES jacks: 1/4-inch phone type, Stereo miniature phone type
LINE OUT (L/MONO, R) jacks: 1/4-inch TRS phone type (impedance balanced)
LINE IN (L/MONO, R) jacks: 1/4-inch phone type
MIC/GUITAR IN jacks: 1/4-inch TRS phone type (for MIC), 1/4-inch phone type (for GUITAR)
MIDI (IN, OUT) jack: Stereo miniature phone type
USB terminal: USB Type-C (Audio, MIDI)
DC IN terminal
Power Supply:
AC adaptor
USB bus power supply (USB Type-C port, 1.5 A or more)
Ni-MH batteries (AA, HR6)(sold separately) x 6
Alkaline battery (AA, LR6)(sold separately) x 6
Current Draw:
1,100 mA (AC adaptor)
1,500 mA (USB bus power)
Expected battery life under continuous use:
Alkaline battery: Approx. 2.5 hours
Ni-MH battery: Approx. 3.5 hours
Size & Weight:
External dimensions: (W) x 10-7/8 (D) x 2-13/16 (H) inches
Weight (excluding AC adaptor): 2 lbs 7 oz
