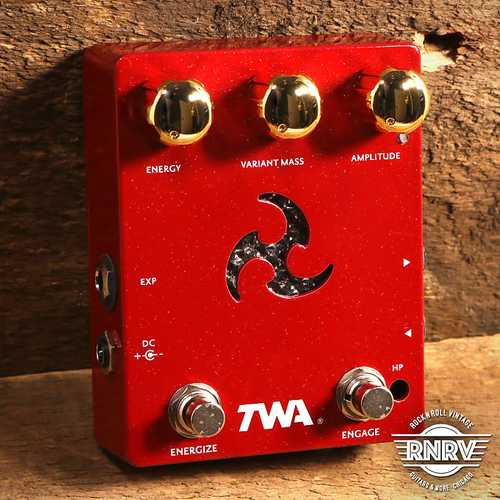

TWA Totally Wycked Audio Triskelion 2.0 Harmonic Energizer
Description
It’s taken us entirely too long to release the Mk. II version of our infamous Triskelion, but as they say good things are worth the wait!
The TK-02 features the same gnarly, energy-infused tones as its big brother, with the addition of several new control options, a smaller, pedalboard-friendly chassis and a lower, wallet-friendly price!
The Triskelion uses vintage Synth technology to re-shape the harmonic structure of the input signal, adding punch, clarity and depth to any guitar tone.
The Triskelion’s specially designed filter can create glassy clean tones, boost midrange for throaty solos, or tune your rig to any room for a wall of singing, resonant feedback. Massive amp sounds, explosive lead-breaks, infinite sustain, and downright nasty, energy-intense tones are just a few of the uses for the Triskelion – the possibilities are almost limitless!
The Triskelion circuit is based on the uber-rare Systech Harmonic Energizer – this pedal was prized by several well-known artists, including Joe Walsh and Greg Lake. It’s most notable advocate was guitar legend Frank Zappa, who used the Systech for many of his throaty, mid-boosted Guitar tones.
It’s no surprise that Zappa’s son Dweezil relies on the Triskelion to replicate his father’s guitar sounds for the ongoing Zappa Plays Zappa project. In fact, Dweezil has been known to use three – yes, THREE – Triskelion’s in his live touring rig!
So if you’re looking to step out from the masses and create guitar tones that drop jaws as well as drawers, then you owe it to yourself to add a Triskelion – or three – to your tone arsenal. Get energized!
TK-01 vs. TK-02
The following changes/upgrades have been added to the Triskelion Mk II that were not present on the TK-01 –
Footswitch control of Gain Engage
S3™ “Shortest Send Switching™” – a relay-based true bypass switching that defaults to bypass if power is lost
HP switch for extended frequency range
Gain Select Switch – selects between original or attenuated Gain Level
Classic/Modern Switch – selects between two different frequency ranges for additional tonal options.
Smaller, pedalboard-friendly chassis (Hammond 1590 size)
Lower price
The Triskelion is basically a single-band parametric EQ with optional Gain (level) boost. The secret to its special sauce is how the selected frequency and “Q” (width of the boosted frequency peak) of the filter will affect the interaction between your guitar and amp.
Energy – Controls the Peak, or “Q” of the selected filter frequency. CCW settings will generate a wide; smoothe; less intense Peak for the filter, while CW settings will create a very sharp, intense Peak, allowing the selected frequency to jump out aggressively. Maximum boost is +22 dB @ 155 Hz; +16 dB @ 1 kHz or +16 dB @ 1.55 kHz
Variant Mass – Controls the frequency to be boosted. Control range is 155 Hz (CCW) to 1.55 kHz (CW) in Classic setting or 220 Hz (CCW) to 2.1 kHz (CW) in Modern setting.
Amplitude – When engaged, controls output level of Triskelion. Maximum output is +47 dB (CW). However, actual amount of Boost is frequency-dependent, and will vary depending on where VM and Energy controls are set.
HP Switch – When engaged cuts 155 Hz by -20 dB, effectively extending the high-frequency range of the pedal.
Amplitude Engage Switch – Turns Gain off/on, allowing Triskelion to be used as a straight EQ or EQ with Level Boost.
EXP Jack – Allows user to control VM setting using an external expression pedal. Recommended Expression pedal is a Roland/Boss EV-5.
Power – Triskelion can run off a standard 9-Volt battery or 9-Volt DC adaptor with tip-negative polarity. Current draw ranges from 80-100 mA, depending on control settings. We recommend our PA-9 Power-All or similar device for clean, consistent power.
INTERNAL CONTROLS -
Classic/Modern Switch – Selects between the original Triskelion frequency range of 155 Hz – 1.55 kHz, and a Modern range with a slightly attenuated low-end (220 Hz – 2.1 kHz) for a smoother, more wah-like sweep when using an EXP pedal.
Gain Select Switch – The original Triskelion circuit had so much Gain that it would actually clip, pummeling the front-end of anything it was plugged into. The Classic setting features the original Gain structure, while the Modern setting reduces Gain by -9 dB, creating a slightly more polite pedal that won’t destroy your amp.
EXP Offset Trimmer - Adjusts Triskelion’s response to optimize performance with a variety of Expression pedals.
